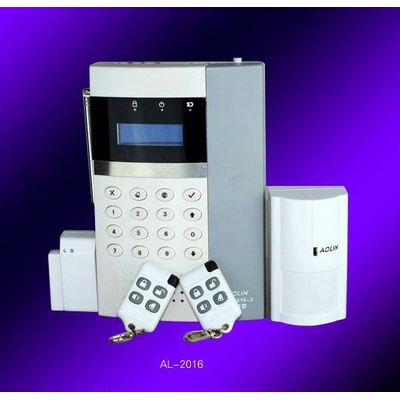

Burglar Alarm

Technology Parameter:

1. Power Voltage: AC: 185V ~ 245V DC: 12V Working Current: 1000mA

2. Standby Current: ≤35mA

3. Operating Current: ≤75mA

4. Arming Current: <300mA (without outside Siren)

5. Receiving Frequency: 433.92 u00b10.5MHz

6. Pre-set Call for Help Number: 4PCS, 1 Center Number, 1 user identification number

7. Backup Battery: 11.2V 7# chargeable Battery 8PCS

8. Built-in Siren: >85dB

9. Standby Time: ≥8 hours

10. Mainframe Size: 210 X 140 X 47mm

11. Wireless Received Straight Line Distance: ≥200M

12. Wired Accessory Tigger Mode: disconnection spring alarming

13. Spring keeping time: 0.5 second

14. Defence areas: wireless area 8, wired defence area 4.



Control panel:

1. Power supply: AC:185-245V, DC:12-20V, 1000mA

2. Alarm current: ≤300mA

3. Frequency: 315MHz /433MHz

6. Standby current: 12V, 0.5AH

5. Static current:≤35mA

4. Receiving distance: 150m



Remote controller :

1. Power supply :DC:12V

2. Working current: ≤7mA

1. Arm, disarm, panic alarm, select protective zones independently

2. Automatically dial preset phone numbers when being triggered

3. Remote controlled by mobile phone to arm, disarms, panic alarm, listen to the record and monitors the alarming scene.

4. Advanced American CPU processing circuit

5. Complicated codes (million groups), the repeat-code possibility is 1/10000 comparing with the traditional way

6. CMS&GSM optional, support Ademco Contact ID.

7. Interfaces for 24-hour smoke detectors, gas detectors and external sirens

8. Built-in 6*7# backup chargeable batteries

9. Built-in 85 db siren

10. LCD display (2 languages operation screen)

11. 16 wireless and 4 wired protective zones

12. Record and record play back

13. 72 pieces event log

14. Time display

15. Arm & disarm time preset-able

Suitable For burglar
