Aluminium Handwheel

Materials : Aluminium Alloy

Feature : Light ,High- impact ,

Description :

Use with indicator having gravity /positive drive

Black glossy epoxy finish aluminium .

Black oxide Steel insert drilled .

Indicator ,number increasing as the wheel turning in cloclwise from or Anti-Clockwise .

Socket head grub screw



Specification :



When ordering pls completely the Model No. Specification

Sample DY21-1 dxDxRationx I/E

DY21-1: Model No

d: Insert socket diameter

D:The diameter of the wheel

Ration : Digital indicater Cover ,from 0-9 -- 1/10 ; from 0-12 --1/12 . and so on .

I/E : I--- Number increasing by turn the wheel in clockwise/ E---Number increasing by turning the wheel by anti-clockwise

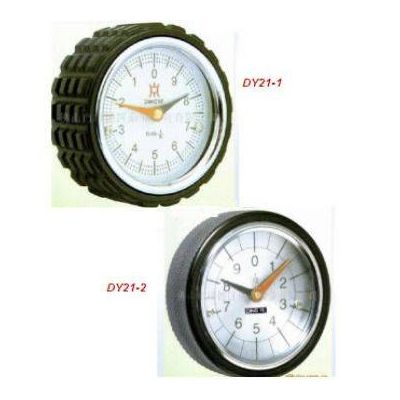

DY21-1 10X 65X Ration(10,12,15,18,20,25,30,40,50,100)x I/E

DY21-2 10X65XRation(6.10,12,15,18,20,25,30,40,50,80,100)x I/E





For detail specification ,pls contact us by mail or call us by phone .



Color : Black



Dingye is the professional machinery accessories manufacturer for Knobs, Handles ,Handwheel . cable carries ,indicators and kinds of machinery accessories .We are a qualify supplier for many

Famous machinery bands .We are warmly welcome to any OEM making according to the design

Drawing and given sample

Feathure : Light ,High- impact ,

Specification :



When ordering pls completely the Model No. Specification

Sample DY21-1 dxDxRationx I/E

DY21-1: Model No

d: Insert socket diameter

D:The diameter of the wheel

Ration : Digital indicater Cover ,from 0-9 -- 1/10 ; from 0-12 --1/12 . and so on .

I/E : I--- Number increasing by turn the wheel in clockwise/ E---Number increasing by turning the wheel by anti-clockwise



DY21-1 10X 65X Ration(10,12,15,18,20,25,30,40,50,100)x I/E

DY21-2 10X65XRation(6.10,12,15,18,20,25,30,40,50,80,100)x I/E





For detail specification ,pls contact us by mail or call us by phone .
