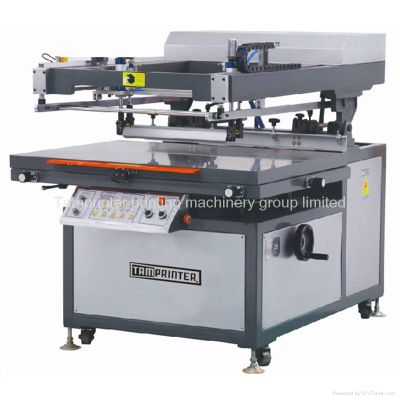

TMP-90120-B Oblique arm CE screen printer

Technical parameters:



Workbench area:1000X1300mm



Max printing area:900X1200mm



Min screen size:650X700mm



Thickness of print (mm):0~50



Source power (kw):3.7



Rated voltage (v/hz):380/50HZ



Printing speed (pcs/h):400-1000



Machine size(mm):1800X1400X1300mm



Max table height:820



weight:550kg



1 set 900mm length squeegee holder with 920mm length scraper;



1 set 1200mm length squeegee holder with 1220mm length scraper.

total 2 set

(1). This screen printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.



(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.



(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.



(4). Vacuum adsorption fixed printing pieces.



(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.



(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.



(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.

TMP-90120-B

Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.
