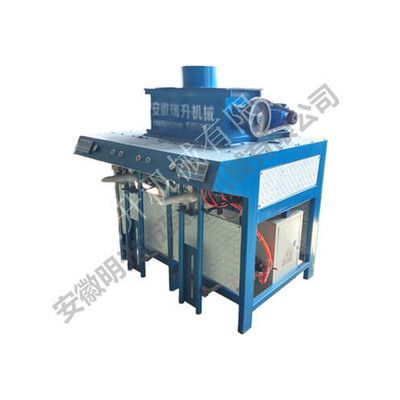

Cement Automatic Valve Port Packing Machine, Double-Valve Cement Packing Machine

Ruizhi Brand Cement Automatic Valve Port Packing Machine, Double-Valve Cement Packing Machine, Double-Mouth Cement Packaging Machine for Sale

Product introduction


Environmental performance is high, the exhaust system with perfect, thus reducing the dust produced in the process of packaging.Packaging of high precision, there are two feeding way that through import mitsubishi frequency control of motor speed, the engine electronic control adopts PLC control, with high precision weighing sensor and configuration quantitative control instrument imported from Japan, the instrument can be equipped with a standard interface, which can realize communication with the central system, overall monitoring control system for packing.Arch breaker are installed in the bin, in front of the screw conveyor will play loose material, so that the material is not easy to knot the arch

bridge.environmental protection rubber piece of clip bag device for the mouth, can sealing clamp, won't have any dust overflow to the packing.Form a complete set of conveying seam system can execute (delivery, plastic bags sealing, ruffled, layering,seam, pallet), etc


Specifications:
powder filling machine, powder packing machine, packaging machine for powders
automatic fill weigh system
adjustable weight high accuracy

Working principle:

First, the bag need be applied manually to the filling spout and the filling process is started by a push-button.Your material will firstly go to the hopper and then be filled into the bags via the feeding parts. The filling flow is controlled by the frequency-change rotating speed. When the bag is filled fully, the bag clamping device will automatically open and the bag will be conveyed to the sewing system for sealing.

Working process:
Manually bag placing → Automatic filling → Automatic weighing → Automatic conveying → Automatic sealing (sewing,heating or weld) → next process


Product paramters

Error of bag heavy:50±0.5kg
Qualified rate of bag heavy:98%
Every mouth production:10-15t/h

Every mouth power:4kw

Single bag weighs:20-50kg(adjustable)

Product application

Medicine, chemical, pesticide, non-metallic, paint, ceramic, etc. Such as: ceramic powder, calcium carbonate, wet powder, carbon black, rubber powder, food additives, pigment, dyestuff, zinc oxide, medicine powder, etc.

This machine is especially designed for powder filling machine, powder packing machine, packaging machine for powders packing bagging machine for powder into open-mouth bags like plastic woven bags, Kraft bags, sacks, paper-plastic compound bags and barrels, cartons.
