Automatic 2 colours bottle screen printer

Product Description

Automatic bottle cap screen printer, Automatic bottle cap screen printing machine, bottle Cap printing machine, bottle cap printer, automatic bottle screen printer
Usage: Automatic bottle screen printer is designed specifically for the printing of hollow plastic bottle and other cylinder article, with independent feeder, efficient printing, and other containers can be converted mold printing, simple operation.

Specification:

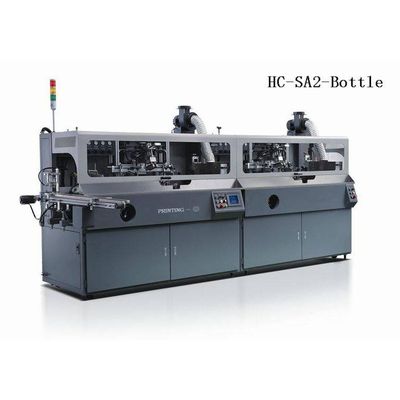

HC-SA2-Bottle Automatic bottle cap screen printer
1. For cylinder bottle: 4000PCS/HR
2. For ellispcs bottle: 5000PCS/HR
3. Printing diameter: 25mm-90mm
4. Compress air: 5Bar
5. Liquid gas: 1.5Bar
6. Working Table type:Double Plate support and Cam transport
7. Motion characters:Object transported through cam wabbler mechanism
8. Max Printing Diameter: Round:100mm, Oval: Width:260mm.
9. Max Printing length:300mm
10. Max Feeding belt width:260mm.
11. UV Lamp wattage:2pc 4000w
12. Flame: Light automatically
13. Dominate Machines: 1900mm*1200mm*1600mm
14. Scrambler: 3050mm*1300mm*1500mm
15. Vice Machines: 2290mm*600mm*750mm

Features:
1. Designed for circular and elliptical to describe the device's screen printing and design, simple structure, convenient debugging, stable and dependable.
2, The Feeding conveyor belt synchronous motor drive, speed, stepless adjustment, the width of the feed can be easily adjusted;
3. By the double-suction nozzle, bottles can be automatically transferred to the screen printing conveyor system; the design of the automatic bottle identification system, according to a unified direction in bottles to the transmission system;
4. By flame treatment plant to improve ink adhesion of PP PE materials; flame pressure can be flexibly adjusted;
5. Automatically pre-bit system, multi-color overprint crucial in bottles word, overprint precision up to 0.08mm;
6. Replace the flat bottle fixture, the machine can be easily printed oval bottle to achieve the function of a machine;
7. The location of the screen and scraper can be achieved three-dimensional precision and angle adjustment, to ensure that the printing position to meet the user requirements;
8. Mechanical transmission with pneumatic combination of Japanese inverter for process control, running smoothly;
9. Touch screen operations; easily communicate with the machine to make operation even easier;
10. Online UV curing systems, import UV device, excellent curing speed and quality, greatly improve the efficiency of printing; printing speed 3600pcs/hr.
11. Electronic sensors to achieve "no printing", the pressure is too low, automatic monitoring of the alarm and other functions.
12. Machine electrical components and control systems using components of Germany and Japan to ensure stable printing quality

Power Supply: 380V
Standard Certificate: ISO9001-2000
Country of Origin: Guangdong, China
Payment Terms: T.T, PayPal, Western Union or L/C
Lead time: Within 5 days when get buyer’s payment or deposit
Shippment: By sea
Guaranty: one year

Packing: by wooden cases
Packing size: 2090×1300×1850mm
Packing volume: 7CBM
Gross weight: 800KG
