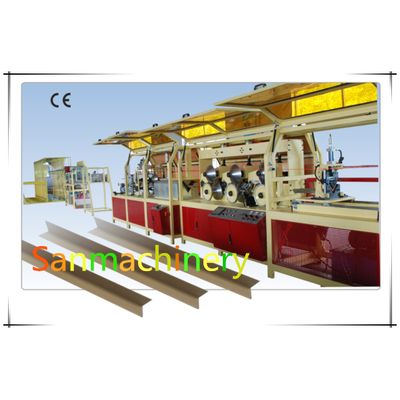

70m/Min Lprofile Paper Edge Protector Production Line/Angle Board Machine with Ce (SANPPL-120G)

Model

SANPPL-120G

L protector size (mm)

25-100 (can be symmetrical and assymetrical)

Thickness (mm)

normally 3-6mm, special order for max thickness of 8mm

Applicable inner paper

360-600g/m2 fluting paper or corrugating medium paper

Applicable surface paper

175-250gsm craft paper

Core diameter of paper roll

3”(76mm) ( 4”or other size must be confirmed when making order)

Max. quantity of Layer

13

Max. speed

50m/min for length not smaller than 800mm.

Control system

PLC, servo motor, Touch screen (HIM) with automatic alarm and failure notice, easy for operation and adjustment.

With output counting.

Paper stands

Composite stands with hoist for inner paper paper. Separate paper stand for surface paper.

Forming wheels

chamber hanging type, easy to change moulds.

Applicable paper roll diameter

max.1300mm

Gluing system

Cascade type gluing system

Glue heating

electrical heating with temperature control system

Quantity of cutter

1

Moving of cutting head

servo motor controlled by PLC

Min cut length

50cm

Cut tolerance

±1mm

Stacker

Automatic stacking

Motor for forming section

two motors with inverter, with high power, direct-connected reducing motor

Power supply

Motor power: 20KW

protector heating power: 6.5KW (normally for winter)

glue heating power: 4.5KW (normally for winter)

Air supply

0.6Mpa, 0.1m3

Total weight (MT)

4.5

Dimension (m)

24.5×2.3×4

Operator

2-3 workers

Required container

One 40”container
