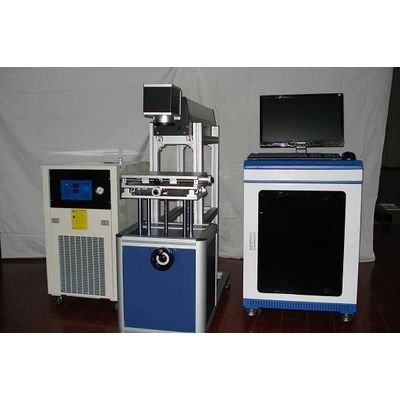

Semiconductor laser marking machine LB-DP50

Adopt semiconductor laser with wave-length 808nm diode pump ND: YAG as medium. The medium produces a lot of reverse particles to discharge laser;

The wave-length is 1064nm with strong pulse under the function of Q-switch so the efficiency of the electron-light transformation is high;

Under the control of the computer the resonance mirror can change the path of the laser beam to accomplish automatic marking.

Laser cavity adopt good performance semiconductor laser machine, power is steady, useful time can reach to 10,000times;

The reasonable design of Laser resonator makes the output light in good quality and the mark in high precision

The three dimensional workbench of X, Y, Z, can satisfy the precision positioning requirement.

Equipped with high-precision water cooling system, can guarantee the machine work in steady for a long time.

Software support Windows operating system, and comprises files output by software such as CORELDRAW, AUTOCAD, PHOTOSHOP, ect.. It also support graphic file formats such as PLT,PCX,DXF,BMP etc, the machine can print automatic code, serial number, batch number, date, bar code and two-dimensional code.

Laser TypeNd: YAG

Laser wave-length1064nm

Laser power50W

Beam quality< 5㎡

Standard marking area100mm*100mm

Marking Depth0.01mm~0.3mm

Linear speed≤7000mm/s

Min. Line width0.01mm

Min. Character size0.2mm

Repetition accuracyu00b10.002mm

Power consumed≤3KW

Laser positioning instructionsLD red light，wave-length 650nm

Electrical source220V 15A

Coolingwater

Dimensions（Lu00d7Wu00d7H）

Host system1000mmu00d7900mmu00d71150mm

Control system650mmu00d7500mmu00d7850mm

Mark on metal surfaces and many non-metal materials, widely used in electrical components, Integrated circuit, communication equipments, hardware tools, precise machinery, glass frames, clocks and watches, jewelry industry, auto accessories, plastic buttons, construction material, PVC pipes and medical instruments
