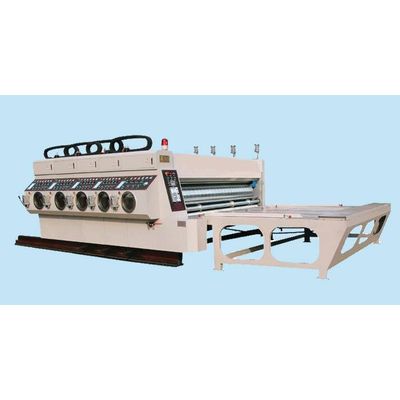

MJBL-3 Four Color Corrugated Paperboard Printing and slotting Machine (CPU digital display)

Function and Characteristics：◆ Paper-feeding: Chain, paper pushing feeding.◆ Paper-feeding roller: The upper axle adopts ginning paper-feeding wheel while the lower axle adopts steel ginning roller. The surface hard chromium-plating guarantees the smooth feeding of the paperboard and does not damage the corrugated cap.◆ Printing roller: You can adopt the advanced, convenient and practical hanging plate with hooked slots (Optional). Loading and unloading the plate can be independently controlled by the pedal switch. The phase adjusting adopts non-stop-working, 360o electrical and numerical adjustment. Input the data as per the error. Automatically adjust.◆ Ink circulating system① The anilox roller adopts the steel material 220 wire or the 220 wire combined anilox roller.② The rubber roller is made up of natural oil proof, acid proof and alkali proof rubber.③ Stop working to distribute ink. Stop working and the work of the ink circulating system for a short time. Cleaning-free to guarantee the quality of the printed things and make the inking color showing no difference.◆ Slotting part (Optional):The slotting part can electrically adjust the phase in 360◆ Pneumatic and combined control of the whole machine which has the function of counting, alarming and operating at the back of the machine.

Main Technical parameter：Model numberOver the paper areaPrinting AreaWorking speed (pieces/min)Max. thickness of board(mm)Electrical powerMJBL-3-480*18001447*20001447*18000-603-105.5MJBL-3-480*20001447*22001447*20000-603-105.5MJBL-3-480*24001447*26001447*24000-603-105.5MJBL-3-480*26001447*28001447*26000-603-105.5
