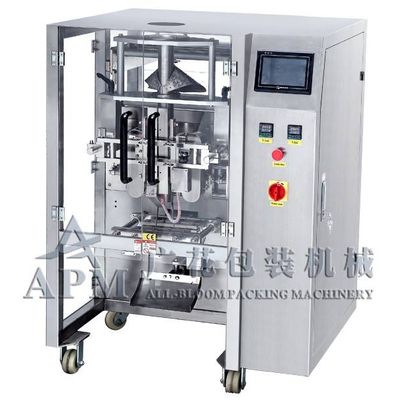

Vertical Granule Packing Machinery

1. Famous brand PLC control system, large touch screen, convenient to operate;



2. Film drawing down system and horizontal sealing controlled by servo motor;



3. Various alarm system to reduce waste;

1. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.



2. It can make pillow bag, gusseted bag, standing up bag, according to customer's requirements.

Model: GH320B

Capacity: Max 65bags/min

Bags size: Length: 50-230mm Width: 50-150 mm

Film width: 120-320 mm

Film thickness:0.04-0.09mm

Air consumption: 0.8Mpa 0.25m3/min

Power source: 1N+PE/50HZ/AC220V/2KW

Dimension: L1200 x W905x H1300mm

Weight: 300kg

Suitable to pack granule, solid state materials, powder and liquid, such as sugar, nuts, beans, coffee, potato chips, puffed food, etc.

Option:

1. Volumetric cups dvice

2. Semiautomatic chain

3. Volumetric cups device+chain
