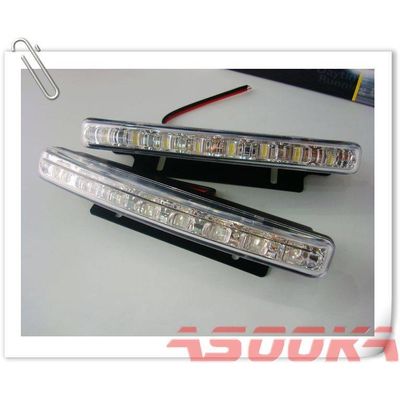

2011 New LED DRL Light

Major Technology Parameters

1.two groups LED lamp, each group of lights for 8,

2.Voltage: DC12V(1V-15V)

3.working current:0.93A

4.Color temperature:6000-7000K

5.Power: each star lights 1W,

6.Rated power: 8.5W

7.Reduce power:5.28W

8.Luminaire degrees:60-70LM

9.The highest temperature:≤50u00b0C

10.The size of the single product:155*35.6*17.8MM;

Specification:

1).Product name: Daytime Running Lights (DRLs)

2).Whole kits Consist: Two LED lamps kits (Left one and right one), wiring, one gift box, user manual

3). Lamp Consist: Electronic circuit board, viewfinder, wiring, lamp hull and housing;

4). Electronic circuit board: high-power LED and Controlling gear

LED Daylight Running Light

1.Hight Quality & after-sale service

2.Best competitive price

3.with CE and Emark

Electronic Protection:

1). High-Voltage Protection:

The control system will stop working automatically to protect the control module from damage when the power voltage is higher than 15.5V, then LED light only works by the outer power directly;

2). Low-Voltage Protection:

The LED light will shut off to protect the system once the voltage is lower than 9v;

3). Lose-Frequency Protection:

The LED light shut off once the control frequency is abnormal to protect the control module and LED light.

4).Wrong-Connection Protection:

It is no harmful to circuit when the three cables of LED were connected incorrectly. The LED light is off when connection is incorrect, it will be on when connection is right. The three cables of LED light are VBB, Vss and VC respectively.
