stator coils winding machine

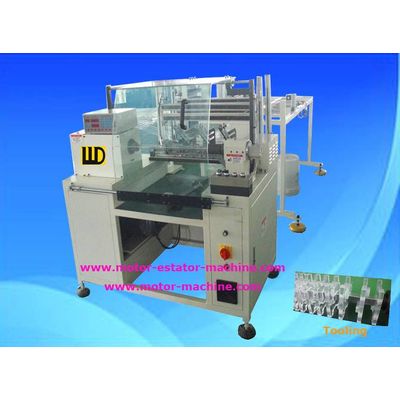

horizontal coil winding machine is suitable for multi-connected and multi layers winding, applying to do coils winding of all kinds of micro motors such as fan motor, pump motor, air conditioner motor, three phases machines etc

Two alternative spindles is to facilitate higher output, stepping motor is responsible for the winding displacement. Machine could wind 1-8 coils simultaneously at a time; automatic slot change, starting winding point, low speed start, low speed stop, double ends stop, automatic reset and automatic start could be set in controller

Max winding speed: 3200rpm

Wire diameter: 0.08-1.0mm

Max winding form OD: 250mm

Min transfer distance: 170mm

Effective winding spindle length: 480mm

Power: 220V, 50Hz, 750W

Air pressure: 0.5-0.8MPa

Weight: 750kgs

Dimensions: 1550x1250x1300mm

fan motor, pump motor, air conditioner motor, three phases machines etc
