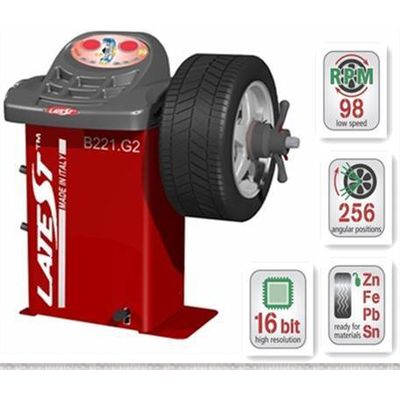

Italy FASEP B221 Digital Wheel Balancer(CE Approval)

Italy FASEP B221 Digital Wheel Balancer



B221 Genius. Simply amazing!

With a space-saving and innovative design, B221 offers accuracy and functions of bigger models. Space requirements are set to a minimum but you still get all features and special programs to balance any type of wheel to perfection.

User friendly technology. Ready for the future !

Based on an modern 16-bit microprocessor, accuracy, speed and special functions (SPLIT, ALU-SE, MARS, AFC, OPT, DUAL-OP, ASF) are all available (see table for availability on selected models).

The 3D control panel allows to work intuitively since the beginning. Few push-buttons let you choose all functions most easily.

Flash memory technology allows to upgrade software in seconds, by just connecting the balancer to a PC. This feature lets you take advantage of our continuous technical developments and make sure your product is never outdated!

Designed by space

A compact base for an elegant and innovative console, with 7 compartments for weights and tools and built-in place for 3 cones. Flanges can be placed laterally on the wheel balancer: 4 flange holders are provided.

A modern design that cares for functionality first.

Precision mechanics.

The heart of the balancer is built around the VQI 3-sensor system, a FASEP exclusive design, and with IFS system (integrated-flange shaft) for maximum centering accuracy.

It also comes with the new shaft 2003, allowing larger tires and rims and designed to work easily on wheels where adhesive weights are required, with a larger access to the inside of the rim, more then any other competitors.



Technical Specification:

Power supply 220V 50-60Hz 1Ph

Motor power 50W

Absorbed Power 60 Watt

Balancing speed 98RPM

Rim diameter 8" (200mm) u2013 26" (650mm)

Rim diameter (alu-s) 8" -23"

Wheel diameter (max) With wheel guard 34" (850mm)

Wheel diameter (max) Without wheel guard 49" (1250mm)

Wheel width(max) With wheel guard 16" (415mm)

Wheel weight(max) 70Kg(155Lbs)

Measuring time 4-15 s

Precision 1 gr.(0.05oz)

a space-saving and innovative design



Based on an modern 16-bit microprocessor, accuracy, speed and special functions (SPLIT, ALU-SE, MARS, AFC, OPT, DUAL-OP, ASF) are all available (see table for availability on selected models).



3D control panel

Flash memory technology



The heart of the balancer is built around the VQI 3-sensor system, a FASEP exclusive design, and with IFS system (integrated-flange shaft) for maximum centering accuracy.



the new shaft 2003
