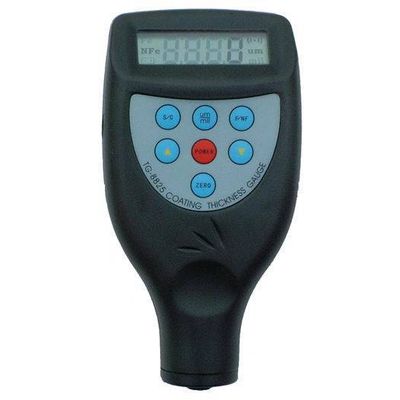

Coating Thickness Gauge HX8825

Description:

Function: TG-8825F (ferrous substrate) TG-8825N (non ferrous substrate) TG-8825FN (2 in 1, F & NF type)

Measuring principle: magnetic induction & eddy current

Measurement range：0～200um/500um /1000um/2000um in built probe (integrated probe)

Resolution：0.1 um (under 100um) 1um (over 100um)

Accuracy: u00b11～3%n or u00b13um

Probe type recognition: Manual (For TG-8825FN)

Measurement mode: single

Data output: RS232C interface (optional)

Power supply: 4x1.5V AAA(UM-4)battery

2 Shutdown models: manual / automatic

Dimension: 131x65x28mm



Application:

1. TG-8825F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

2. TG-8825N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Standard Delivery of TG8825FN:

Main unit(1000um) 1

F type probe 1

N type probe 1

F calibration base set 1

N calibration base set 1

Calibration foil set 1set (4 foils)

Carrying case 1

Instruction manual 1

Optional Accessories

Cable and software for RS-232C
