Anti-High-Temperature LiFePO4 Battery Cell 3.3V 1100mAh

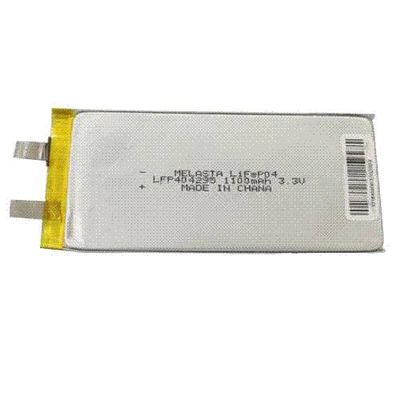

3.3V 1100mAh thin prismatic Polymer LiFePO4 battery cell (LFP404295)



Item Specification:

1. Model Type: Lithium Iron Phosphate Polymer battery LFP404295

2. Nominal Capacity: 1100mAh

3. Nominal Voltage: 3.3V

4. Cycle Life >500 times

5. Charge Voltage: 3.65V

6. Max Continuous Charge Rate( C): 1C (1.1A)

7. Max Continous Dicharge Rate( C): 1C (1.1A)

8. Max Plus Dicharge Rate( C): 3C (3.3A)

9. Discharging End Voltage: 2.0V

10. Size:4.0 x 42 x 96.5mm

11. Weight Approx (g): 42g

12.Operating Temp:

Charge: 0--45 Celsius degree

Discharge: -20--70 Celsius degree

(PS: After revised our productions process standard, we can provide the prismatic type LiFePO4 single battery cells like LiPo battery, but perform better than Lipo Battery in high temperature ambient environment.)



The temperature of different positive electrode materials occur oxidation-reduction reaction:



Tabs:

Positive tab: nickel-plated copper

Negative tab: pure nickel

(We can provide pure alumium tabs if required)



(Notes: Customs design is acceptable to us)





Certification and Test Report:

CE(EMC directives ), RoHS , KC(Korea Certificate), MSDS, UN38.3, 1.2m Drop test.



Warrenty: 6 months

LFP404295

Application:

Emergency light, Medical equipment, electronic manometer, iRobot, Alarm systems and other electric products which need rechargeable battery to start.
