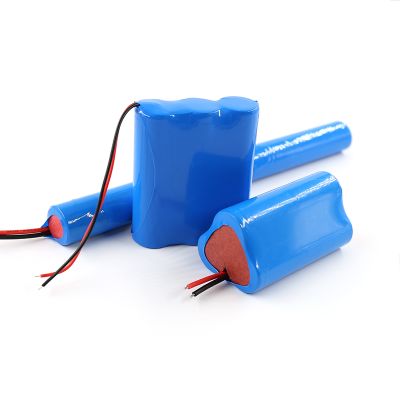

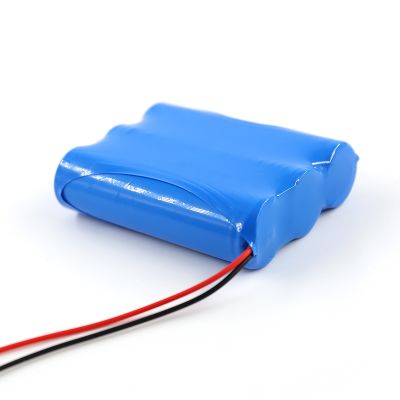

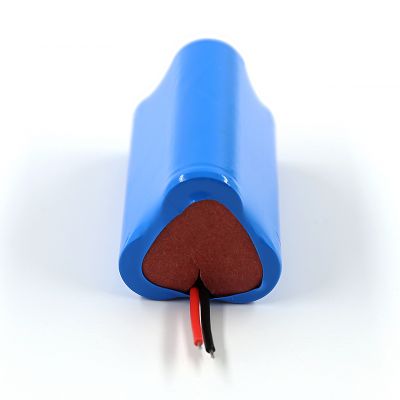

NMC 10.8V5Ah High Energy Density Long CycleLife Lighting Battery Pack

Items

Standard

Comments

Nominal voltage

10.8V

Typical capacity

5±0.2Ah

At 0.2C discharge rate

Max continuous discharge current

3A

Discharge cut-off voltage

About 8.25V

Charge input voltage

14.6±0.2V

Charge mode: CC/CV,Use a constant current, constant voltage(CC/CV) please use special Lithium-ion charger.

Charge current

≤2A

Inner resistance

≤100mΩ

Between positive and negative polar

Operation temperature range

Charge

0u2103~+45u2103

Discharge

-20u2103~+60u2103

When the environment temperature is higher than 45u2103,please pay attention to ventilation and heat rejection.

Storage temperature range

0u2103~40u2103

(Capacity 80%)

Recommended long-term storage temperature is 15~25u2103

Humidity

5%≤RH≤85%

Total Weight

Approx 330±30g

Size(L*W*H)

81*72*28mm

Protection function

Over charge protection,Over discharge protection,Over current protection ,Short circuit protection, temperature protection,

Cycle Life

1) standard charge at 0.2C(A),
2) rest 0.5~1 h
3) discharge at 0.2C to cut off voltage
4) rest 0.5~1h

5) Capacity retention rate≥80%
1000 cycles. 100%DOD
