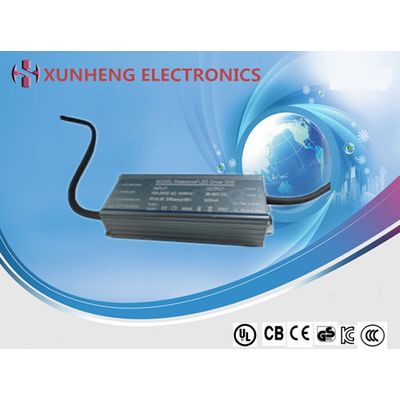

30W Waterproof LED Power Supply with Constant Current, Accept OEM/ODM

Applications:

Suitable for LED lighting and moving sign applications
Suitable for dry, damp, wet location and outdoor applications

Product characteristics:

• Universal input cooling by free air convection
• IP67 design for outdoor installations
• Built-in active PFC function PF>0.95 for 75% load or higher
• Safety approval: IEC/EN60598, IEC/EN61347, CE/RoHS Directive-compliant
• Warranty: 2 years
• RoHS Directive-compliant: heat conductive silicone glue filled, aluminum shell
• Can be used outdoor and work in high humidity and dusty place
• Standard electric box with easy installation, tiny size and weight
• Isolated driver

Electrical characteristics:

• Input voltage: 100-264VAC
• Input current: 280mA max
• Frequency: 50/60Hz (47-63Hz)
• Output voltage: 36-42V
• Output current: 600mA
• Load regulation: ±2%
• Power factor: >0.95
• Output power: 30W

Output protections:

• Waterproof: IP67
• Over voltage protection
• Over current protection
• Short-circuit protection

Environmental characteristics:

• Operating temperature: -30 to 70°C
• Storage temperatures: -40 to 80°C
• Humidity range: 10 to 95% RH
• MTBF: up to 60,000 hours lifetime
• EMC standard: EN55015/EN55022/EN61547/EN61000/GB17743/GB17625
