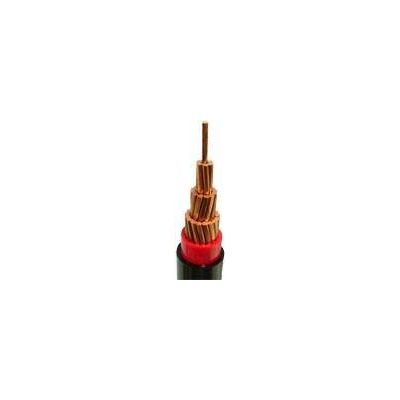

    PVC Insulated Electric Wires



    Standard: IEC 60227, GB/T 5023.3-2008

    Rated voltage: 450/750V or 300/500V

    Rated temperature: 70o C

    Conductor: Solid/stranded/flexible annealed bare coppper

    Insulation: PVC (Polyvinyl-chloride)

    Application: This products are suitable for linking the household electrical appliance, small electric tools, instruments



    and power lighting devices.



    Type Discription Rated Voltage (V) Production Range

    Core Quantity Cross- Sectional Area (mm2 )

    227IEC01(BV) Solid copper conductor PVC insulated wire 450/750 1 1.5~400

    227IEC02(RV) Flexilble copper conductor PVC insulated wire 450/750 1 1.5~240

    227IEC05(BV) Solid copper conductor PVC insulated wire 300/500 1 0.5~1

    227IEC06(RV) Flexilble copper conductor PVC insulated wire 300/500 1 0.5~1

    227IEC07(BV-90) Solid copper conductor PVC insulated wire 300/500 1 0.5~2.5

    227IEC08(RV-90) Flexilble copper conductor PVC insulated wire 300/500 1 0.5~2.5

    227IEC10(BVV) Solid copper conductor PVC insulated PVC sheathed round wire 300/500 1-5 1.5~35

    227IEC42(RVB) Flexible copper conductor PVC insulated parallel wire 300/500 2 0.5~4

    227IEC52(RVV) Flexilble copper conductor PVC insulated PVC sheath flexible wire 300/300 2-3 0.5~0.75

    227IEC53(RVV) Flexilble copper conductor PVC insulated PVC sheath circular wire 300/500 2-5 0.75~2.5

    BVN Stranded copper conductor PVC insulated nylon sheathed soft wire 450/750 1 2.5~90

    BVR BYR Stranded copper conductor PVC/PE insulated soft wire 450/750 1 2.5~70

    BLV Aluminum conductor PVC insulated wire 450/750 1 2.5~400

    BVVB Solid copper conductor PVC insulated PVC sheath flat wire 300/500 2-3 1~6

    BLVV BLVVB Aluminum conductor PVC insulated PVC sheathed circular/flat wire 300/500 2-3 2.5~6

    RVVB Flexible copper conductor PVC insulated PVC sheathed soft wire 300/300 2-3 0.5~2.5

    RVS Copper conductor PVC insulated PVC sheath soft twisting wire 300/300 2 0.5~1

    RVVP Flexible copper conductor PVC insulated braided shield wire 300/300 1-37 0.75~2.5
