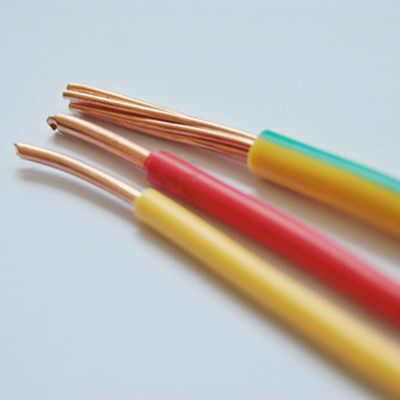

IEC standard 450/750V copper wire 2.5mm 4mm2 6mm 10mm2 16mm2 cable ZCRV heat resistant electric wire

Electrical Wiring Copper Core PVC Cover Flexible Uganda Electric Wire And Cable BVR 450/750V For Lighting 2.5mm2

Scope of Application

System:

This product is suitable for power lines with AC 50Hz and voltage does not exceed 450 / 750V in the transmission of electricity.

Occasion:

The power plant, fixed wiring, household appliances, instrumentation, lighting and telecommunications equipment with AC voltage 450 / 750V and below.

Features

Insulation is good, with a certain anti-acid-base, oil resistance, moisture-proof characteristics; structural stability, the manufacturing process is simple, low prices.

Operating Characteristics

Rated voltage: 0.45 / 0.75 kV

Conductor Material: Copper

Insulation Material: PVC

Conductor Softness: Flexible

Appearance Shape: Round

Operating temperature: The longest permissible working temperature of cable conductor is 70 u2103.

Laying temperature: The cable laying temperature should not be lower than 0 u2103.

Bending radius: The allowable bending radius of the cable shall be not less than 4D and the allowable bending radius of the cable of 25mm or more for the outer diameter (D) shall be not less than 6D.

Color: Black, Blue, Green, Red, Orange, Yellow, Gray, Brown, or as requirement

Packing:100 meters per roll or as requirement

Certification : ISO9001/ISO14001 /OHSAS18001/CCC/CE/CB

Remark: Flame retardant, fire resistance, low smoking and Halogen free, or other property can be available
