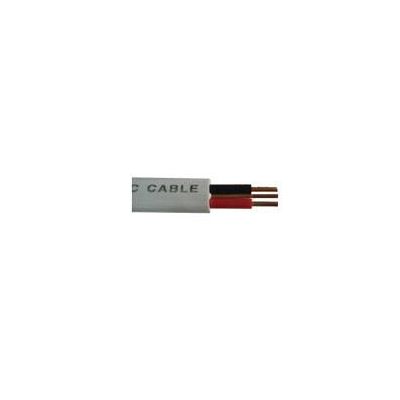

PVC Insulated and Sheathed Flat Wire

STANDARD:HD 21, DIN VDE 0281, BS 6004, BS 6004

VOLTAGE:600/1000V

CAPACITY:50000 coils/week

Applicable Standards:BS 6004, IEC 60227

Voltage Rating:300/500V

Temperature Rating: 70u00b0C

Core Colours:Single core: Brown or Blue

Two core:Brown and Blue

Three core:Brown, Black and Grey Sheath colour: Grey

This product is used as hanging cable, drawing cable and installation for field line, electric appliances and instruments, electronic equipment and automatic devices for electric power, chemical and so on.

It is specially soft, easily folded and movable, smooth and ageing resistant, high pulse staring current resistant.



PVC insulated and sheathed flat wire typically used for small power and lighting applications. Individual cores are PVC insulated with two and three core options available, both include an additional un-insulated circuit protective conductor.

1.Conductor

Solid or stranded plain annealed copper wire (Class 1 or Class 2) to BS EN 60228.

2.Insulation

PVC Insulation complying with BS EN 50363-3 Type Tl1

3.Outer Sheath

PVC Sheath complying with BS7655 Type 6.
