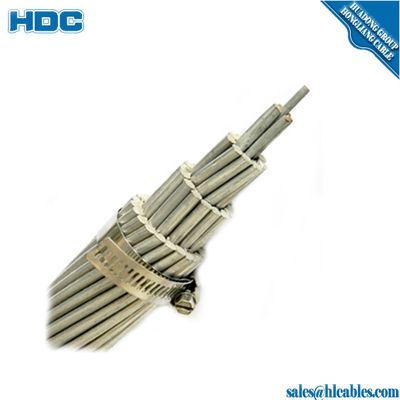

ACAR-Aluminum Conductor Aluminum Alloy Reinforced

Installation and application:

ACAR cable can be installed in air,Is is recommended that the installation instructions indicated by the local electric code, or any equipment, be followed, so that the safe guarding of persons and the integrity of the product will not be affected by deficiencies in the installation.

Description or Construction:

Core: Aluminum alloy wires  6201-T81

Outer Layers: Aluminum  wires 1350H-19

Some of the constructions include alternate wires (1350-H19 and alloy 6201-T81) in the same layer.

Conductor: This bare concentric-lay stranded conductor is made from round aluminum 1350-H19(extra hard) wires and round aluminum-alloy 6201-T81 core wires for use as overhead electrical conductors. These conductors are also manufactured as compact conductors if required.

Property:

1.improved strength to weight ratio

2.better mechanical properties

3.improved electrical characteristics

4.excellent resistance to corrosion

Standard of Production:

1.ASTM B524 Standard, refer to the following specification

B-230 Aluminum Wire 1350-H 19 for Electrical Purpose

B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purpose

B-524 Concentric-lay-stranded Aluminum Conductor, Aluminum Alloy Reinforced ACAR 1350/6201

2.IEC 61089 Standard

3. Other International Standard
