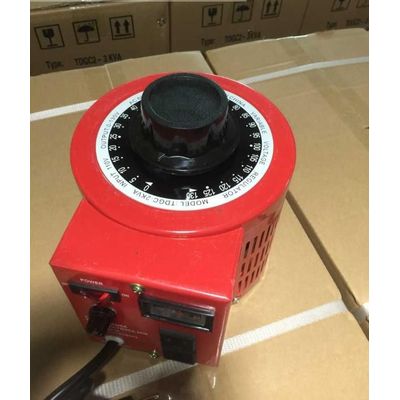

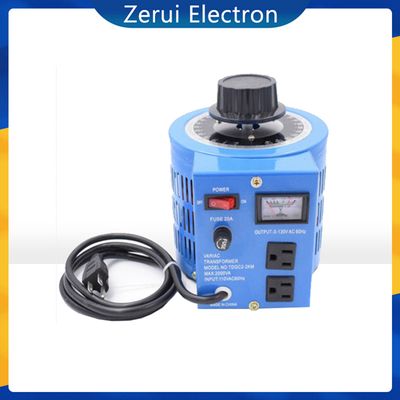

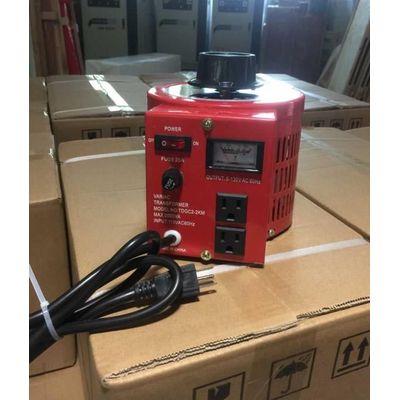

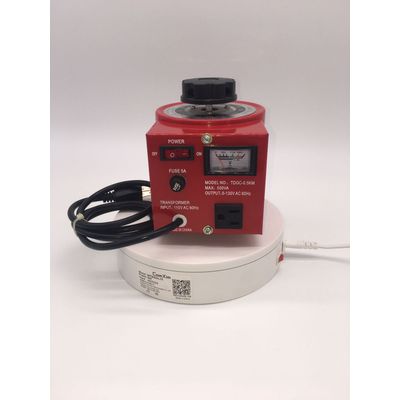

Single Phase Voltage Variac TDGC2-2kva

This type of voltage regulator is in the structure of adjustable self-coupling transformer,
it winds coil on ring shaped core,the brush fits close to the polished surface of coil under
the press effect of spring,rotating shaft drives the brush holder and make brush slide
along with the coil surface,so that to change the contact position of brush,i.e.change the
winding ratio of primary and secondary coils,this enables the output voltage to get smooth
steepless control.The products are featured with undistorted waveform,compact volume,light
weight,high efficiency,convenient operation,reliable,long-term operation,etc.

Model: TDGC2& TSGC2- Series Voltage Variac.

Place of Origin: Zhejiang, China
Brand: ZERUI or OEM.
Capacity:  0.2 KVA to 50 KVA Available.
Input voltage:  Single Phase 220V / Three Phase 380V or Customized.
Output voltage: Single Phase 0-250V / Three Phase 0-430V or Customized.
Current Type: AC
Frequency: 50Hz/60Hz
Efficiency: >90%
Ambient Temperature: -10u2103 to +40u2103
Insulation resistance: >2MΩ
Protection function: Over voltage.
