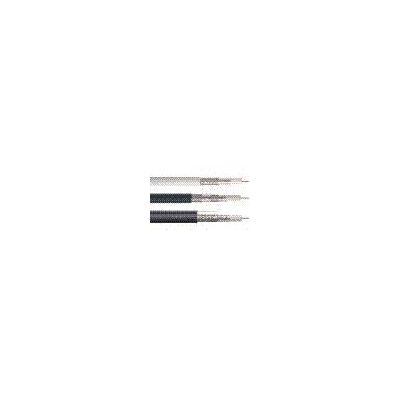

RG Coaxial Cable

Application:



As high frequency transmission coaxial cable, it is used in wireless communication and related eletrical equipments.



Properties:



Working temperature: -10----70deg. The safety temperature is not lower than -5deg.



Adopting new-type aluminum foil and copper net double shielded, effectively resist eletromaqnetism interfere.



Standards: GB/T 14864-93



Structure:



Conductor: Oxygen-free bared copper



Insulation: special PE



Color: original color



Inner shield: aluminum foil packed shield(optional----sign in order)



Earth wire: No



Braiding: bare copper or tinned copper braided shield(optional----sign in order)



Sheath: PVC 70deg. black(RAL9005)



We could produce according to customer's requirements, such as flame resistance, waterproofing, cool resistance, oil resistance, low smoke, halogen free and environment protection type.

Technical data:



Minimun bending radius: fixed installation: 6u00d7outer diameter



Moved installation: 15u00d7outer diameter



The working temperature: fixed installation: -10----70deg.



moved installation:-30----70deg.

Application: As high frequency transmission coaxial cable, it is used in wireless communication and related eletrical equipment
