Product Description

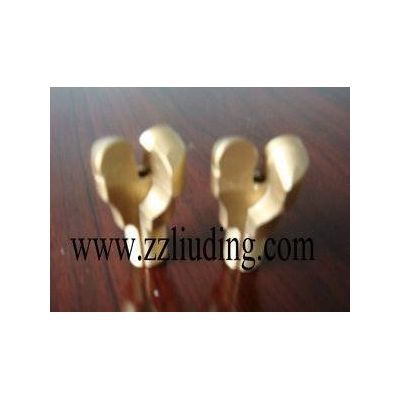

PDC anchor shank drill bits are mainly used for coal mine, water conservanvy and hydropower, construction and communication penetration. Their life is 10-30 times of alloy bits, usually the blade has 2 or 3 wings.
LD adopt high quality cutters and advanced brazing technology, so the anchor shank drill bits have high impact resistance and stable performance, can be applied to rock formation of f≤12,like gravel, granite, limestone,etc. Our diameter is from 25mm to 270mm, any special design is available upon customers' request
Product Feature
1. PDC anchor shank drill bits
2. Professional manufacturer PDC anchor bits PDC anchor shank drill bits
3. PDC anchor bits mainly used for coal mine, water conservanvy and hydropower, construction and communication penetration
Product Specification / Models
PDC anchor shank drill bits
TypeD(mm)H(mm)Wing QuantityPDC cutterWaterpore
ShapeQuantityQuantityD(mm)
MG28A28482half115
MG28B28482whole215
MG30A30482half115
MG30B30482whole215
MG32A32482half115
MG32B32482whole215
MG42B42603whole335
Special Design is available upon customer's request.
Application / Models
PDC anchor shank drill bits are mainly used for coal mine, water conservanvy and hydropower, construction and communication penetration.
