pcb test probe for all kinds of industrial use

shenzhen probes manufcaturing company

big current

precise tol

quick delivery

good quality

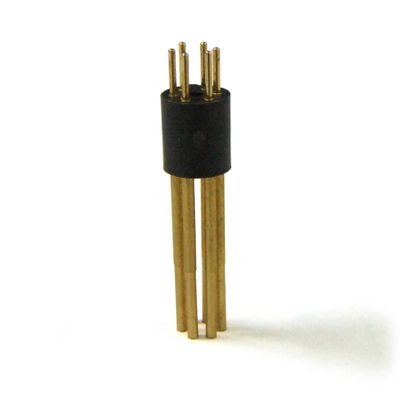

Pogo pin test probe is one of dedicated probe from XFC.Our products have good quality and lead this product have a long used life.



CP50 can used in ICT, PCB and so on.



This Product have many different heads and have two different tubes. But we also can made by customers' reqiure.



Spring Probe Head can use with XFC50 series Receptacle.











shenzhen jiahuaxing metal manufactory co,.ltd has been manufacturing pogo pins ,probes and stamping parts ,auto parts and also other hardware products.



. we owned two factories in shenzhen and dongguan city



. iso14000,iso9000,ts16949 has been approved



. best goods and service are provided for you







see what i can do for you!!!



Functional test needle



Materials



Plunger BuCu(or Sk4),Gold(or Rodium)-plated



Barrel Phosphor Bronze with Gold plated



Spring Music wire with Gold plated



Recommended Hole Size 0.70mm



Contact Resistance 25m



Current Rating 5A

Full Stroke Spring Froce (12g)60g



(The brackets inside is to settles the ware)



socket and pin is different for using















Technical Index











Head Material Beryllium Copper

Barrel Material Bronze

Finishes Gold Plated/Nickel Plated

Spring Material Piano Plated

Full Travel 2.5mm(0.100")

Recommended Min Center 1.27mm(0.050")

Drilling Size 0.914mm(0.036")

Elastic force by travel 2mm-3mm 75g

Current Rating 3A

Probe Resistance 50m

all kinds of industrial use

quick device and good quality
