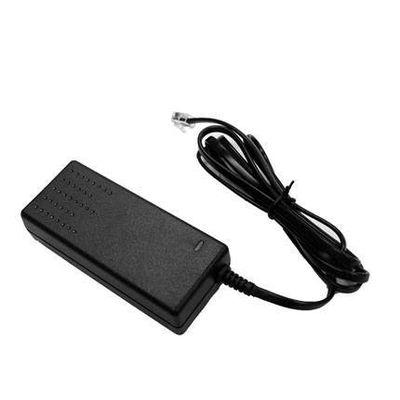

AC/DC Adapter36w

InputVoltage range90~264Vac, 135~370Vdc

Frequency range40~63Hz

AC current0.9A/100Vac

Inrush current (max.)30A/230Vac

Leakage current(max.)0.25mA/240Vac

ProtectionOver load>110% rate output voltage power for 5.0V~36V

Protection type:hiccup mode,recovers automatically after fault condition is removed

Short circuitPower shutdown

Auto recovery after fault condition is removed

EnvironmentWorking Temp.0~40℃

Working Humidity20%~90% RH non-condensing

Storage Temp. Humidity-20℃~85℃, 10%~95% RH

Temp. Coefficientu00b10.03%/℃ (0~50℃)

Vibration10~500Hz, 2G 10min/ cycle,period for 60 min,each along X,Y,Z axes

Safety & EMCSafety Standard UL60950, EN60950,EN61558

Withstand voltage I/P-O/P:3KVac, 1 minute

Isolation resistanceI/P-O/P: 100M ohms/500Vdc/25℃/70%RH

EMI condition & radiation Compliance to EN55022 class B, FCC part15 class B

Harmonic currentCompliance to EN6100-3-2,3

OthersMTBF100Khrs min, MIL-HDBK-217F(25℃)

Dimension105mm*45mm*27.8mm

Packing 120pcs/Carton

ConnectorPlug According to client's requirement

Cable18# or 20#, other type available by client's requested

Note1.Al l parameters are specified at 230Vac input, rated load,25℃ 70% RH ambient;

2.DC voltage: the output voltage set at point measure by plug terminal & 100% load;

3.Ripple & Niose are measured at 20Mhz bandwidth by using a 30cm twisted-pair wire terminated with a 0.1uf & 47uf parallel capacitor

4.Tolerance: includes set up tolerance, line regulation, load regulation,

5.Line regulation is measured from low line to high line at rated load,

6.Load regulation is measured from 0%~100% at rated load

7.Efficency is measured at 100Vac,

8.The power supply is considered a component which will be installed into a final equipment.The final equipment must be

re-confirmed that is still meets EMC derectives

Output

DC VoltageCurrent rangeRipple & Noise Line regulation Load regulationVoltage tolerance Eff.

5.0V0~5.0A50mVu00b11%u00b15%u00b15%>70%

7.5V0~4.0A75mVu00b11%u00b15%u00b15%>70%

9.0V0~4.0A90mVu00b11%u00b15%u00b15%>75%

12.0V0~3.0A120mVu00b11%u00b15%u00b15%>80%

15.0V0~2.4A150mVu00b11%u00b15%u00b15%>80%

18.0V0~2.0A180mVu00b11%u00b15%u00b15%>80%

22.0V0~1.6A220mVu00b11%u00b15%u00b15%>80%

24.0V0~1.5A240mVu00b11%u00b15%u00b15%>80%

32.0V0~1.125A320mVu00b11%u00b15%u00b15%>80%

36.0V0~1.0A360mVu00b11%u00b15%u00b15%>80%
