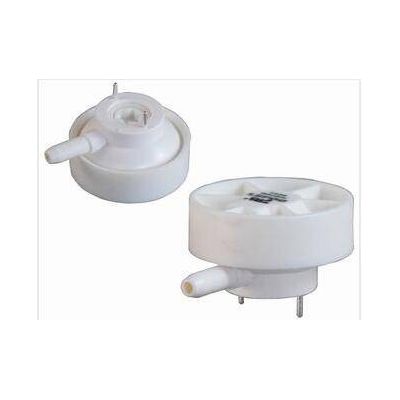

LFS-02 SERIES

PRESSURE SWITCH, FOR AIR CONTROL AND AIR-CONDITIONING APPLICATIONS

LFS-02 Series is an air pressure sensitive switch for industrial or residential applications.



By applying the pressure controlling mechanism triggered by specified air pressure only, the circuit can be turned ON-OFF automatically.

Designed as an economical interface between pressure systems and printed circuit boards

As a gauge or differential pressure switch with almost no hysteresis

Applied to detection both positive and negative pressure

A body design that allows the pressure ports to be rotated

Various terminal styles including wire leads

Medium: Non hazardous gas only

Pressure Range:

Pressure: 5 ~ 800 mbar (1mbar=100Pa)

Vacuum: 5 ~ 800 mbar

Maximum Pressure:

Pressure: 1000 mbar

Vacuum: 1000 mbar

Operating Temperature Range:-10u00b0 C to ~ 90u00b0 C

Switch Function: SPST-NO

Electric Rating: 250mA 250VAC

Connection: Inlet 4.0mm or 5.0mm for tube connection

Approval: UL, CUL
