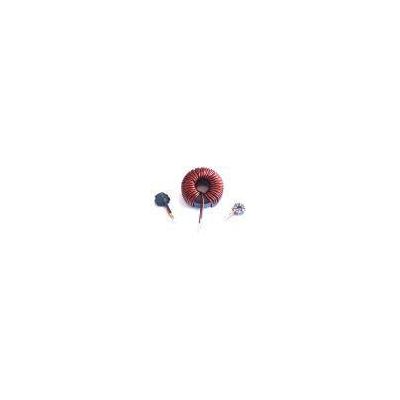

Common Mode Inductor /choke

Features & Application

1. Separated windings for minimum interwinding capacitance

2. Single layer windings for highest common mode impedance over the widest frequency range

3. OR wound on nylon casing to protect windings

4. Spacer provides 1-3 mm creepage distance for UL, CSA, and IEC compliance

5. All materials used are UL94-VO recognized

6. Operating temperature: - 40 u00b0C to + 105 u00b0C. Suitable for 50 Hz to 500 KHz

7. Available in both vertical and horizontal mount

8. Application includes power line filtering, EMI/RFI for switch mode power supplies

9. Available in vertical header mount for ease in PCB assembly

10. Easy FR-4 board mounting Good vibration resistance

Model NO: Common Mode Inductor /choke



Product Specification according to customeru2019s request.

Notes:

1.Inductance is minimum per winding tested at 20 KHz 1V.

2.Rdc is maximum per winding.

3.SRF is minimum for each winding.

4.Parts are designed for 40℃ Max temperature rise at the rate current. Specification might be changed due to under developing and improving.
