lemo equivalent circular push pull connector EHG

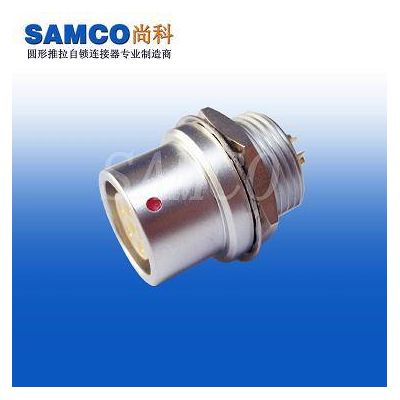

EHG Fixed socket with protruding shell, nut fixing, key (G) or keys (A...M and R)

B series connector(Indoor, keyed)

B series connector with the following main features:



1.Security of push-pull self-latching system.

2.Multiple types (2-26 contacts).

3.Solder or PCB contacts (straight and elbow).

4.High-packing density for saving space.

5.Multiple key options to avoid cross mating

of similar connector;

6.Keying system(G key standard ) for connector alignment.



Available Contacts No.:

00Bsizes: 2, 3 and 4

0B sizes: 2, 3, 4, 5, 6, 7 and 9

1B sizes: 2, 3, 4, 5, 6, 7, 8, 9, 10 and 14 16

2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18,19 and 26

3B sizes: 4, 8, 10, 12, 14, 16, 18,20,22,24,26 and 30
