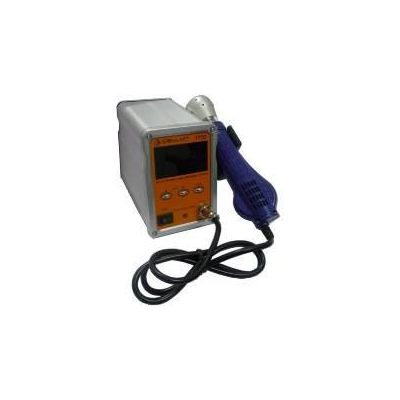

Irda Rework Cellkit 777D

Dedicated infrared heating with strong penetration capability in evenly heated parts. A breakthrough over disadvantages from traditional hot air desoldering station which covers elements when heating, causing higher thermal impact.

-ESD Safe Unit-LED Temperature Display -Infrared desoldering technology through independent development and research.This machine can desolder all components in 15-45 mm size.-Infrared heating and desoldering twice faster than hot air gun, greatly reduce heat damage rate on device-Infrared heating has no hot air flow and will not affect the surrounding small components. It is applicable to all small components especially micro BGA component.-Lamp handle is installed with sensitive magnetic sensor. When lamp handle is held down facing floor, system is directly set to work mode. When it put back to handle bracket (on position), system is automatically set to standby mode, it is convenient for real-time operation. -Can be integrated with our 853 series preheating station which has 500W heating system and preheating area of 120 mm in width and 120 mm in height.-Warranty: 1 year parts and labor. please contact us for claims or damaged or missing parts (accessories) within 7 days from date of purchased

Specification:Current voltage(AC):220 + 10%Current overload protection: >= 6APower consumption:180 WInfra red temperature: 200-380 C, adjustable

Package contain:Rework station 1Lamp handle 1Handle bracket 1Two-core power cable 1User manual 1Warranty Card 1

Packaging Size:Pc/Box: 1Box Dimension：31.2*28*15.5cmWeight: 3.6 kgCarton Size:Box/Ctn：6 Carton Dimension: 55x32x44 cmWeight:22 Kg
