Glass door hinge

Glass door hinge

1.Material:Iron+GB zinc alloy

2.Finish:Sandy silver,Sandy gold,Polishing silver,Polishing gold,Nickel safin

3.Style:full overlay,half overlay,embed

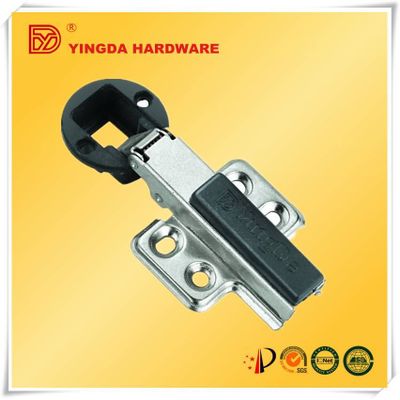

Glass Cabinet Door Hinge

Cap finish: Sandy chrome, sandy gold, sandy black brass, Polish chrome, Polish gold, nickel satin

>yd-2609: Straight arm available for full overlay door

>this hinge system requires that the glass door have a 30mm hole bored for each hinge used.

>they work with glass thicknesses of 4.5mm to 7mm (slightly under 3/16 to slightly over 1/4

>the "cover caps" (required to hold glass door to hinge system) are available in 5 finishes; Sandy chrome, sandy gold, sandy black brass, Polish chrome, Polish gold, nickel satin, other finish can be ordered. Screws to hold cover cap to hinge are included with hinge. The outside diameter of the cover cap is 1-1/4".

YD-2609
