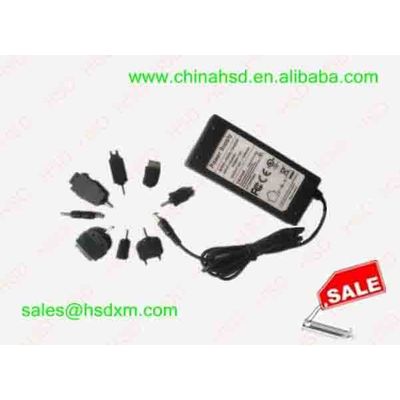

new design ac power adapter

new design ac power adapter

1.high quality, low price,

2. CE, GS, PSE, KC, FCC etc. Certificates

3.Punctual Delivery

Size: L117u00d7W49u00d7H29 mm

Shipping Days: 5-15 days

Payment Methods: T/T, L/C, Western Union ,Paypal .

Certificates: CE.UL.SAA.JET,ROHS

Input Condition: AC100~240V 50/60 Hz

Input Rated Voltage: 100Vac~240Vac

Input Voltage Range: 90Vac~264Vac

Input Rated Frequency: 50/60Hz

Input Frequency Range: 47Hz~63Hz

Input Current: 0.15A Max

Input Inrush Current: 30A Max

Input No Load Power Consumption: 0.5W Max At 115Vac/230Vac

Efficiency: 70% Min

Rated Output Voltage & Current: 3.0V-24V & 0.5A - 3A

Output Line Regulation: u00b11%

Output Load Regulation: u00b15%

Output Over Shoot: 10% Max

Output Ripple And Noise: 1% Max

Output Rising Time: 20ms Max At 115Vac

Output Hold up Time: 8ms Min At 230Vac

Protection: OCP OVP SCP OPP

Dielectric Withstand Voltage: 3KV 5mA 60s

Leakage Current: 0.25 mA At 230Vac

DC Plug Specification: Acording to customer's requirments

Operating Temperature Range: 0u00b0C~40u00b0C

Storage Temperature Range: -10u00b0C~+70u00b0C

HST-xxxyyyy

IT products,household products,

toys,Multi-media,

tel-communication,electric

two years guarantee!!
