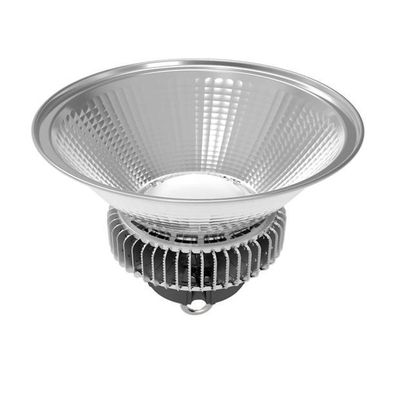

High bay LED lamp

2.1 Ac HV drv.

This lamp adopts LEDs driven directly from AC line, The AC drv. Eliminates the bulk capacitor and transformer, which are the bottleneck of LED lamp time, AcDrv. integrates all the necessary components in single chip, with external resistors, the four segments LED current could be set up separately, which increases the LED utilization ratio and improve the THD. Driver based on Acdrv has a ideal power parameters such as PF, efficiency, THD, EMI, with integrated power compensation, the driver system input power keep constant when the input voltage changing. Ac Drv. is compatible with various brands TRIAC and supports 0-10V analog dimming.

AC drv. Specification could be provided on enquiry.

- Heat pipe-Riveting and massive fins cooling technology

By using the 6mm heatpipe, the heat generated by the lighting quickly transfers to the cooling module of massive radiation fins, efficiently reduce the temperature of the LED lighting chips and extend the lifespan of the lighting source.



- 3D heat dissipation

Professional heat dissipation structure design, Modular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation.

- Compressed Fins Technology

Creative Compressed Fins Technology: rivet the heatpipe to heatsink body closely, minimize the heat resistance, greatly improve the heat dissipation effect, and it is much lighter compared with similar products.



- HDT technology

high efficient heatpipes contact the heat source directly, maxima the performance of the heatpipe to reach the cooling effect.

- Optional beam angle reflector

Flake designed high-purity aluminum reflector angle scales with PC cover options to meet the professional light distribution, to adapt to different situations. There are 60 ,90,110 degree angle beam angle options for the flake designed reflector. And there are also two options for the reflector material, high-purity aluminum or PC. Professional optic designed, the reflector is suitable for different situations Both build-in power driver Design

Both build-in power driver design is good at small size, which make the whole lamp look more harmonious and more beautiful. You can choose one depending on your needs.

Electrical parameters



Input Voltage (V)AC198-242V



Power (W) 80W(@220V)



Power Factor>0.98

THD(%)<15%

GBl762.1-2003 (inlet current of each phase<=16A)



SurgeTolerance1KVLN,2KVL/NPE



LuminaireClassClassI



WithstandVoltage(V)2.2KV(DC)





Optical parameters:





LumensOutput(lm)>8000lm(@6000K)



CCT(K)Cool white , natural white and warm white

(Ra)70(+-3)



IP protection IP65



LightDistribution LED even aligned

LEDHVLEDLM80



BaseBoard1.5mmAlMCPCB,Thermalresistance>1.5



LEDThermalResistance6u00b0C/W



WorkTemperature -40~80u00b0C(PCBTemperature)



CertificationGB7000.1-2007,  CCC, UL, CEEnergyStar

widely used for high bay lighting factories, workshops, warehouse, stadium, exhibition halls, logistic center, highway toll station, supermarket, gas station, farmer market etc.

guarantee for 50000 hours life
