LED street lamp

China factory/exporter of Hi-Power LED ROAD/STREET LAMP



We are the first compnay in China producing the LED Stret Lamps with the power above 100W.

We got CE approval, ISO9001:2000 and 8 China National Patents.

# Long Lift: 50,000 hours ~ 100,000 hours.

# High Efficiency: >85%; Power Factor (PF): >95%

# Without ultraviolet and infrared radiation; Friendly Environment Material: without lead and mercury.

# Thermal Contorl: the temperature rise will not exceed 20u00b0C.

# Special Over Current Protection: each LED buld is equipped with current Protection.

# Wide Range of Voltage: 85V~260V AC, promp starting.

# Wide Range of Applicable Areas: it can match with solar and wind energy systme.

Voltage Flexible Choices: 12/24V DC or 110/220/240V AC.

# Large Luminous Radius: our LED street lamps can reach 120u00b0 or above.

# Good Color Rendering: the color index up to 80CRI, really indicate the original colors.

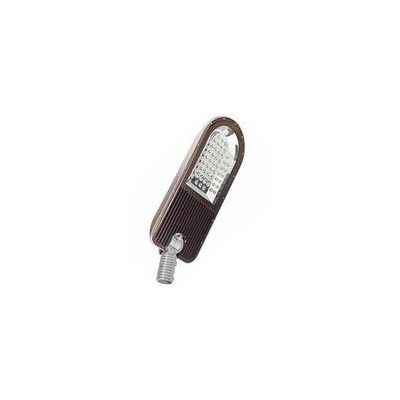

High power LED street lamp

High power LED street lamp Item No: HPLED 001



China Faryuan Supply: High Power LED street lamps are with long service life, energy conservation, environmental protection, high luminance, good stability, easy installation and good suitability, etc.



- Uniformly distributed light and color without lens or halo.

- Great illuminating angle:

- Accurate constant-current driving with current fluctuation less than 1mA

- Strict temperature control

- Special circuit protection

- Variable power



Main applications: Solar Products, the street lamps on main and minor road. High power LED street lamp

50W Hi-power LED Street Lamp

50W High power LED street lamp Item No: HPLED 50W



- Uniformly distributed light and color without lens or halo.

- Great illuminating angle:

- Accurate constant-current driving with current fluctuation less than 1mA

- Strict temperature control

- Special circuit protection

- Variable power

Main applications: For Road or Street Usage.

Voltage: 12/24V DC,110/220V AC

Luminous flux: 3500lm

Service life: >50000 Hours

Color Rendering :> 80CRI Casing Material: Aluminum alloy die casting

Dimension: 530mmu00d7260mmu00d7140mm 50W High power LED street lamp

80W Hi-power LED Road Lightings

80 W High power LED road lamp Item No: HPLED 80W





LED Quantity: 80pcs

Power: 80W

Voltage: 12/24V DC,110/220V AC

Luminous flux: 5600lm

Service life: >50000 Hours

Color Rendering :> 80CRI

Casing Material: Aluminum alloy die casting

Dimension: 860mmu00d7310mmu00d7200mm

80 W High power LED road lamp

100W Hi-power LED Road Lampes

100 W High power LED road lighting Item No: HPLED 100W



LED Quantity: 100pcs

Power: 100W

Voltage: 12/24V DC,110/220V AC

Luminous flux: 7000lm

Service life: >50000 Hours

Color Rendering :> 80CRI

Casing Material: Aluminum alloy die casting

Dimension: 860mmu00d7310mmu00d7200mm

LED street lamp factory

High power LEDs Road Lamps

High power LEDs (HPLED) can be driven at hundreds of mA (vs. tens of mA for other LEDs), some with more than one ampere of current, and give out large amounts of light. Since overheating is destructive, the HPLEDs must be highly efficient to minimize excess heat; furthermore, they are often mounted on a heat sink to allow for heat dissipation.

If the heat from a HPLED is not removed, the device will burn out in seconds. (Solid-state lighting and LED lamp)



A single HPLED can often replace an incandescent bulb in a flashlight, or be set in an array to form a powerful LED lamp.



LEDs have been developed that can run directly from mains power without the need for a DC converter. For each half cycle part of the LED emits light and part is dark, and this is reversed during the next half cycle. The efficiency of HPLEDs is typically 40 lm/W[42]. As of November 2008 some HPLEDs manufactured by Cree, Inc exceed 95 lm/W [43] (e.g. the XLamp MC-E LED chip emitting Cool White light) and are being sold in lamps intended to replace incandescent, halogen, and even fluorescent style lights as LEDs become more cost competitive.



Descriptions of Street light, Road Lamps

A street light , lamppost, street lamp, road light, light standard,
