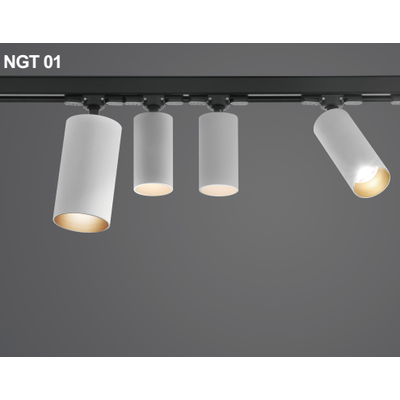

NGT01 is a high performance trackspot, which is designed with a deep set lamp position for visual comfort and glare control.
This attractive track spot is available in a range of body and baffle colours, which makes it perfect for most enviroments.
The inbuilt driver maintains its minimal design, and the high performance LED chip and optics provide a range of beam angles, CCT and CRI outputs.
General Information as Below:
Material | Aluminum | ||
Luminaire Color | White Black Grey | ||
Optional Light Source | CREE/LUMINUS/BRIDGELUX | ||
Color Temperature | 2700K/3000K/4000K/5000K | ||
Color Rending Index | Ra≥80;Ra≥90 | ||
Beam Angle | 15°/24°/36° | ||
Safty Degree | Class II, IP20 |
Model | Power | Driver | Lumen Cree 3000K | Beam Angle | Size | Input |
NGT-0106 | 6W | 150mA | 480lm | 15°/24°/38° | Ø45*102mm | 220-240V |
NGT-0106H | 6W | 150mA | 480lm | 15°/24°/38° | Ø45*200mm | 220-240V |
NGT-0112 | 12W | 300mA | 960lm | 15°/24°/38° | Ø62*120mm | 220-240V |
NGT-0118 | 18W | 450mA | 1500lm | 15°/24°/38° | Ø62*150mm | 220-240V |
NGT-0125 | 25W | 600mA | 2500lm | 15°/24°/38° | Ø90*165mm | 220-240V |
NGT-0132 | 32W | 800mA | 2810lm | 15°/24°/38° | Ø90*165mm | 220-240V |
