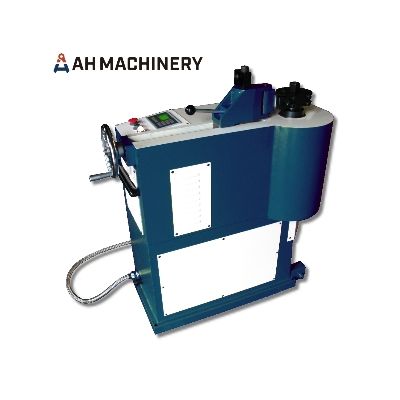

AH Section Bending, Tube Bending Machine

AH Machinery supplies full range of NC, Hydraulic Section Bending Machine, Tube Bending Machine, Pipe Bending Machine made in Taiwan, customized specifications are available.

/APPLICATIONS/
Aerospace, auto accessories, auto aftermarket, construction, department of defense, exhaust applications, gym equipment, high performance racing, motorcycle parts, play structures, severe duty trucks, shipyard and so on.

/APPLICABLE MATERIALS/
Conduit Tubes, Furniture Iron Pipe, Gas Tubes, Hard Copper & Aluminum, Hydraulic Steel ST35, Mepla, Generic & Similar Tubes, Mild Steel (EN:S275JO), Soft Brass, Soft Copper, Stainless Steel AISI304-316, Stainless Steel AISI308, Standard Steel Tubes.

/SPECIFICATION/
- Type= NC, Hydraulic, Profile
- For= Light Duty, Heavy Duty
- Shape= 11 - 18 Type
- O.D. [mm/inch]= 2.54/1, 12/0.47, 15/0.59, 20/0.79, 25/0.98, 25.4/1, 30/1.18, 32/1.26, 35/1.38, 40/1.57, 45/1.77, 50/1.97, 50.8/2, 60/2.36, 65/2.56, 70/2.76, 76.2/3, 80/3.15, 100/3.94, 120/4.72, 125/4.92, 140/5.51, 150/5.91, φ10, φ15, φ17.2, φ20, φ30, φ35, φ50, φ60, φ70, φ76.1, φ100
- Sheet Metal Thickness [mm/inch]= 1.5/0.06, 2/0.08, 2.3/0.09, 2.6/0.10, 2.9/0.12, 3/0.12, 3.2/0.13, 3.5/0.14, 4/0.16, 5/0.20, 6/0.24, 7/0.28, 9/0.35, 10/0.39, 12/0.47, 15/0.59, 20/0.79, 25/0.98, 30/1.18, 32/1.26, 35/1.38, 40/1.57, 42/1.65, 45/1.77, 50/1.97, 55/2.17, 60/2.36, 70/2.76, 80/3.15, φ10, φ15, φ20, φ30, φ35, φ50, φ60
- Sheet Metal Height [mm/inch]= 2/0.08, 3/0.12, 4/0.16, 5/0.20, 6/0.24, 7/0.28, 8/0.31
- Diameter [mm/inch]= 200/7.87, 250/9.84, 280/11.02, 300/11.81, 350/13.78, 400/15.75, 450/17.72, 500/19.69, 550/21.65, 600/23.62, 650/25.59, 700/27.56, 800/31.50, 850/33.46, 900/35.43, 1000/39.37, 1200/47.24, 1300/51.18, 1400/55.11, 1600/62.99, 1700/66.93
- Diameter of Top Shaft [mm/inch]= 65/2.6, 80/3.15, 100/3.94
- Diameter of Lower Shaft [mm/inch]= 50/1.97, 70/2.76, 100/3.94
- Main Motor [HP/kw]= 4/3.0, 5.5/4.1, 10/7.5
- Range of Bending Speed [m/min]= 5, 6, 7

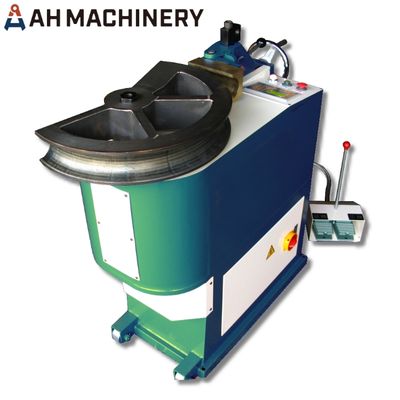

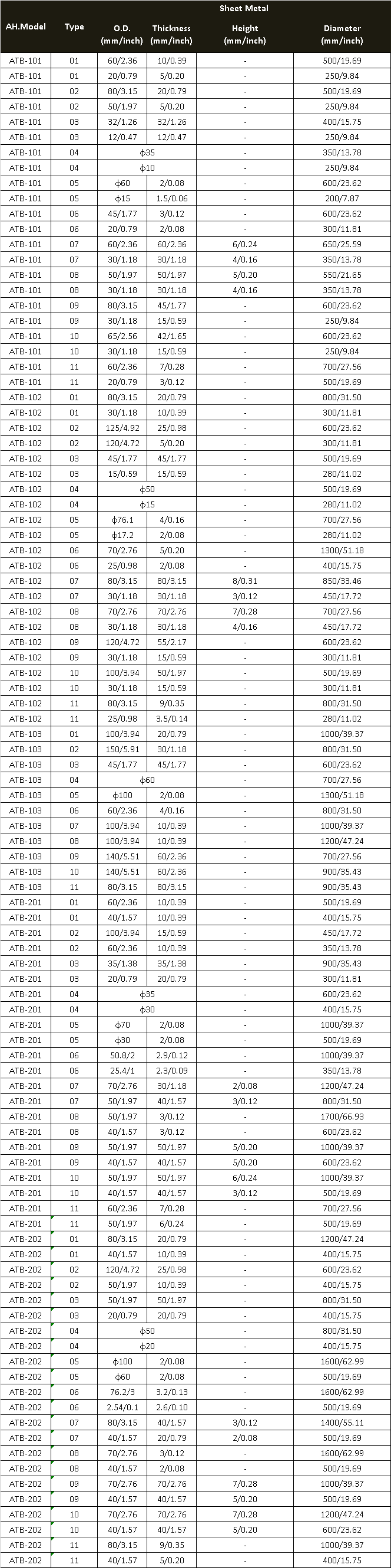

/AH Hydraulic Section Bending, Tube Bending Machine Specification/

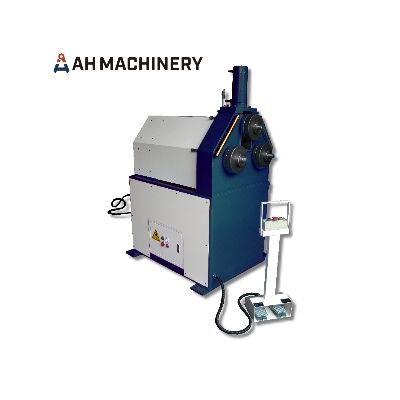

/AH Profile Tube Bending Machine Specification/

/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.

Welcome to contact us!
A Homia will satisfy you as long as you give us a try!
