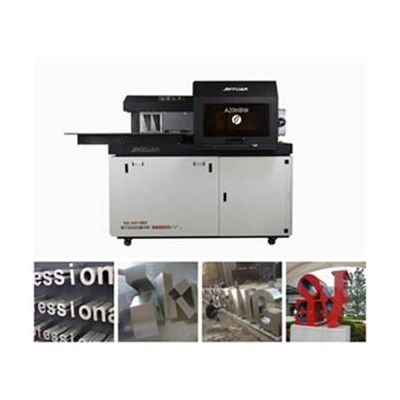

Auto bending machine- A20HBW

Product Description

Feeding System ( Progressive clamping feeding device )
Slotting System ( plane cutter slotting system )
Bending System ( Double blade alternate bending system)
Suitable Material ( Stainless steel,Galvanized steel, Aluminum)
Material Height (20-200mm)
Material Thickness ( Stainless stel, Galvanized steel<=1.5mm, Aluminum<=2.5mm)
Size Accuracy ( ±0.1mm )
Input File Format( .dxf, .plt )
Dimensions( L1860MM *W680MM * H1700MM)
Power ( AC220 50Hz 3.0Kw)
Air Source ( 0.6m³ /Min)
Total Weight ( 600Kg)

Product Feature

Two groups fixture which are set respectively before and after the encoder to clamp the material for progressive work. Compare with the circular clamping feeding it can effectively reduce the material waste during using the plate material. Serco drive and high quality ball screw and linear guide configuration makes the feeding smooth and steady. The strengthened design of the blade and knife improve the height and thickness of plates.

Product Specification / Models

A20HBW

Application / Models

Advertising letter making
