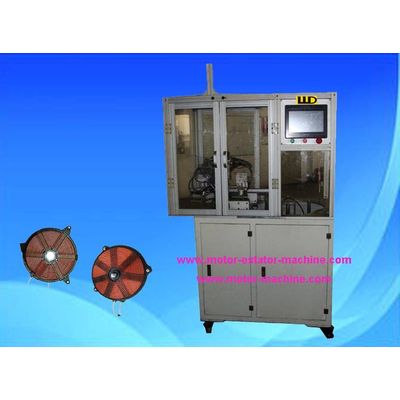

induction cooker coil winding machine

induction cooker coil winding machine does the rack loading, wire feeding, winding, rear wire cutting, unloading automatically. The machine is of modules design.

induction cooker coil winding machine does the rack loading, wire feeding, winding, rear wire cutting, unloading automatically. The machine is of modules design.

Rack OD relies on the customer product.

Each strand OD difference among slots is +/-0.05mm

Winding turns no. is settable.

Turns no. each race is settable.

Lead length is settable; the max length is 400mm.

Winding spindle positioning deviation: under +/-0.1 degree

General weight and borne weight area rate is less than 500kg per square meter.

Power supply: AC220V, 50-60Hz

Power: 1.5KW

Air pressure: 0.5MPa

Insulation strength: 0.5 mili Ohm

Dimension: 1500 x 1000 x 1800mm

induction cooker, rice cooker, induction heater
