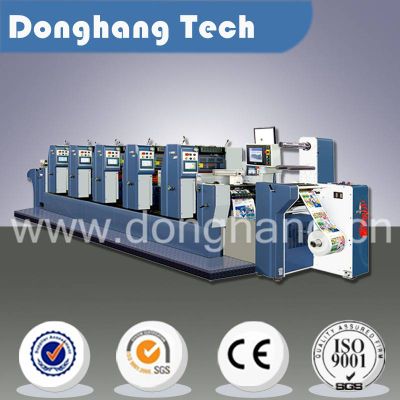

520mm high speed label printing machine

DHL520 intermittent PS plate printing machine is a high-precision offset machine. It can print web with a maximum width of 520 mm. This machine is widely used in label, plastic film, color box, packaging paper and the like printing fields.

1. Register system:

Each unit is driven by independent servo motor, which guarantees high-accuracy register during high speed running; the machine is equipped with stationary image monitoring system which can realize vertical and horizontal registering with less labor cost;



2. Stable printing pressure:

Rubber blanket cylinder is equipped with eccentric bearing having double-row tapered roller structure, which realizes reliable clutch operation and stable pressure; the forme cylinder and impression cylinder are equipped with tapered roller bearings, completely eliminating up-and-down movement caused by gap between bearings;



3. High-strength cast iron base:

The base guarantees stable and reliable printing;



4. Continuous alcohol dampening system with auxiliary bridge roller:

The continuous alcohol dampening system with auxiliary bridge roller ensures that the printing products are colorful and clear.



5. Positioning system:

After inputting printing length at main console, each unit will automatically reach specified position, which reduces registering time and material waste;



6. More optional devices:

The machine can be configured with cold foiling unit, laminating unit, die-cutting unit, waste removal unit, slitting unit, sheet-cutting unit and stack collecting unit;

label printing plant, medium- and large-sized packaging and printing enterprises
