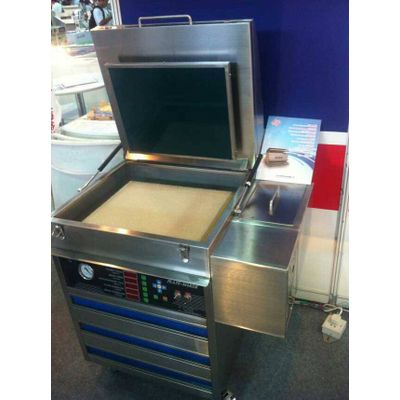

Flexo Plate Making Machine with a Circulation Water Tank (HY450B)

Flexo plate making machine features an exposure with UV lamps and vacuum suction with cover sheet on a bard PVC board.

This series is equipped with a circulation water tank. The after-washed residude can be filtered from the water and the water can be reused again.

Washout section is completely made of stainless steel with flat brushes and evolving plate-holder. Brushes can be finely adjusted in height to work with different plate-thicknesses and water temperature can vary from 0 up to 45C.



Drying section has one drawer with hot air circulation by a heating blower temperature range from 0 C up to 95 C controlled with a thermostat, The central control panel monitors all the functions with electro-mechanical switches and timers.

TypeExposure SizeExternal Size

HY300B400*300mm670*510*960mm

HY350B450*350mm670*580*960mm

HY450B600*450mm830*620*960mm

The basic steps of sheet polymer plate making:u00a0

Back exposure

Face exposure

Plate washed

Inspection & drying

Post cure & detack finish

We manufacture flexo label printing machine, ultrasonic label cutting machine, label cutting and folding machine, plate making machine and so on.
