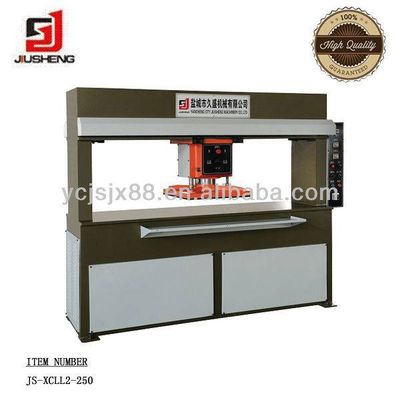

XCLL2-250 Hydraulic moving head foam cutting machine

1.moving head cutting machine

2.Gantry frame structure is adopted

3.offer OEM

4.has three type choose

1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.



2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.



3. Differential oil way is adopted to allow rapid and convenient cutting.



4. The hydraulic system specially designed is featured by low noise and low oil consumption.



5. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.



6. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.



7. Products of special specifications can be customized. is available for selection.

Model Number

XCLL2-250 moving head cutting machine



Arm width

500*500mm



Stroke adjusting range

10-125mm



Main Cutting Force

250KN



Tension distance

40-165mm



Seissor speed

0.16m/s



Area of work table

1760*500mm



Overall dimension

2000*800*1980mm



Total weight(approx.)

1500kg



Automatic Grade

Semi-Automatic



Machine

moving head cutting machine



Driven Type

Hydraulic



Color

red+dark green



Main Motor Power

2HP



Auxillory Power

0.55HP



Condition

New

It applies to the shaping and the cutting of one layer or several layers of the materials such as leather, rubber, canvas, nylon, cardborard, and so on.

Exported countries



Currently, we are pleased to export our products to clients throughout the world, including India, Indonesi, Australia, Malaysia, Vietnam ,Taiwan and so on.

We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.

Factory direct sale; Guarantee Period one year.

Note: we can produce different types, tons and cutting area of machine according to your demand.
