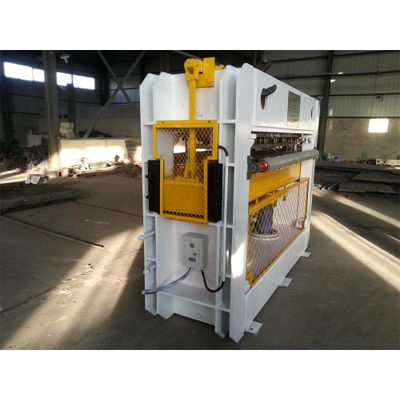

Strip joiner

This device is a special equipment for end to end connection of coil, its main function is to ensure continuous operation of the production line, improve equipment efficiency. It’s widely used in the lines steel painting, degreasing, straightening, rewinding, pickling,etc. for the connection of coil head and tail.

3. Collected manufacturing

   1) Specification

SFH4.0x1650

2) Material

(1)Material:hot rolled plate

(2) Function

Tensile strength:σb≤650Mpa

Yield strength:σs≤300 Mpa

(3)Thickness:1.2-4.0mm

(4)Width: 850-1650 mm

3) Properties

(1)Stitching thickness:2.4-8.0mm(Total thickness of 2 sheets)

(2)Stitching width:≤1650mm

(3)Mold through width:≤1850mm

(4)Mold gap::100 mm

(5)Stitching time:≤20s

(6)Stitching rows:1 or 2 rows /time

(7)Stitching type:See the following picture

(8)Threading type:manual thread

(9)Height of working center:1433mm

(10)Floor area of equipment:3280x1420x2412mm(The hydraulic station is not included.)

(11)Feeding direction:Left

(12)System pressure:≥25 Mpa

(13)Working pressure:≤22Mpa
