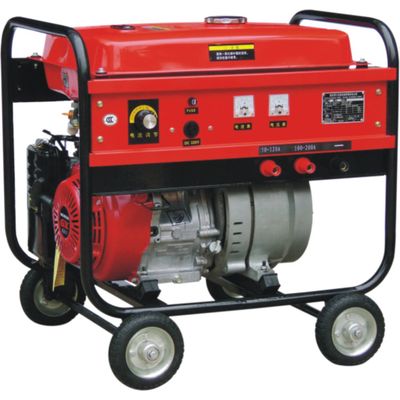

200A 100% Duty-cycle Medium-frequency Internal Combustion Gasoline DC Welding Generator

Product Description

This gasoline welding generator can be used as both generator and welder.

Product Feature

1.Powered by imported gasoline engine, it is of stable quality and reliable performance.
2.Unique medium frequency generating design, 100% load succession rate and can continuously work for 24 hours.
3.Big and small winding design ensures steady output of both big current and small current.
4.Adopt magnetic induction control system of independent property right. It can effectively avoid electrical component deterioration and has lower failure rate.
5.Sufficient auxiliary power of DC 220V can meet the requirements of field operation including grinding and lighting etc.
6.With initiating excitation circuit, the problem of magnet loss is avoided.
7.It is the lightest among products of the same kind and is convenient for field handling.

Product Specification / Models

Model:AXQ1-200-1
No-load voltage(V):60-85
Working voltage(V):22-28
Electric current range(A):50-200
Weldable electrode diameter(mm):1.2-5
Welding method: Manual welding
Duty cycle(%):100
Auxiliary power:DC220V/3KW
Engine type:GX390/CH440
Valve type: OHV
Displacement(CC):389
Ignition mode: Non-contact transistorized ignition
Oil tank capacity(L):25
Oil consumption:230
Oil alarm system:With
Noise level at 7 meters dB(A):76
Starting mode:Recoil start
Insulation grade:H
Protection class:IP21
L ×W × H(mm):720×680×725
Net weight(Kg):66

Application / Models

This welding generator can be used as both generator and welder.It is most often used to weld pipes, railway, track,guardrail and natural gas pipelines. Our customer reference is CHINA RAILWAY.
