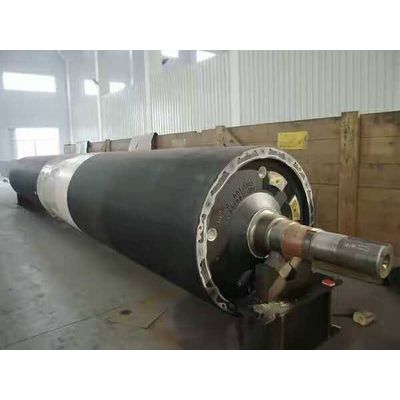

Drive Wire Roll for papermaking machinery

Product Description

Roll Body: Q235B reel pipe; thickness: 28mm ; the thickness of the finished product wall is 25mm

Bulkhead is made of HT200 cast iron.

Spindle head: using 45# carbon steel conditioning treatment after rough turning

Spindle heads with baffles both sides

To produce finished products according to drawings after the whole body is hot charged.

Roll body dynamic balance: accuracy grade G2.5.speed of dynamic balance is 300 m/min (add mass method)

Thickness: unilateral thickness: 10-20mm

Hardness: "A"98±2

The type of rubber surface: ZT--PWD--I,2

The performance of rubber surface: high friction coefficient, good abrasion resistance, acid and alkali resistant.

Product Feature

All kinds of rollers for papermaking machinery

Product Specification / Models

2012

Other Information

Roll Body: adopt HT250 cast iron to cast inside and outside, thickness: 100mm the thickness of the finished product wall is 80mm

Bulkhead is made of HT200 cast iron

Spindle head: using 45# carbon steel conditioning treatment after rough turning

To produce finished products according to drawings after the whole body is hot charged

Thickness: unilateral thickness: 25mm

Hardness: "A"98±2

The type of rubber surface:ZT-PPV- I,2

The performance of rubber surface: good ripple property, non-deformation, oligo thermal, good paper release property.

With grooves on the surface; The width: 0.5-102mm; The depth:2-3mm; Surface width:2
