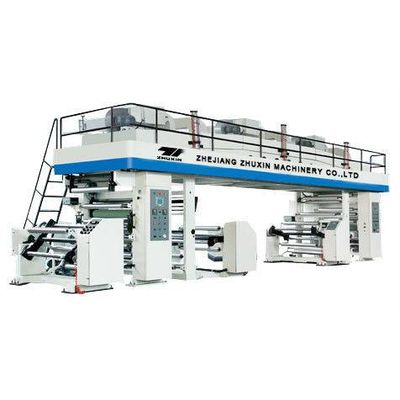

High speed Laminating Machine

Purposes: the advantages of the machine reference to Japan's Fuji models developed high-performance high-speed dry laminating machine is suitable for BOPP, PET, nylon, CPP, CPE, aluminum foil, paper roll film material of two or more multi-layer composite , forming a packaging material having a high strength, high preservation and resistance to cooking, such excellent characteristics. The fine structure of the model, attractive appearance, superior configuration, durable. Control parts and key components imported brand-name professional devices to ensure high reliability of the device is the ideal choice for our customers upgrading! Performance features: machine imported PLC logic control and protection, and improve the reliability of the machine. first, second unwinding, oven, winding Sec closed loop constant tension, through the control of the human interface and display. three sections of open-top oven thermostat, and out of the wind stratification, negative pressure design, secondary air, which saves energy, but also reduce the residual solvent content. guide roller oven active synchronous transmission, reducing the material stretch and deformation., the two unwinding and rewinding devices, AC gear motor, flip duplex winding non-stop automatic feeding of all inflatable shaft loading axis. first unwinding (mask, and the end of film) are EPC gas-liquid corrective high-precision anilox roller coating systems, pneumatic scraper, leveling rubber rollers, glue loop device. high precision backpressure three roller-composite device, composite roller oil heating device outside the circle, more uniform heating. coating, composite unit uses double-conversion online drive, timing belt driven guide rollers in the box to ensure synchronization. cooling roller composite film more formation, Tinggua,. winding section uses two AC vector motor control taper tension, pneumatic back pressure roller cutter cutting automatic rewinding, to reduce wear and tear.The main technical parameters:

Machine Mode ZYGF1050A

Max. Mechanical speed 160m/min

Max.Recombination velocity 150m/min

Guide roller width 1100mm

Max.Unwinding diameter 600mm

The closing volumes diameter 800mm

Paper core size Inside diameter

outside diameter 76mm

92mm

Max.Unwinding tension 30kgf

Max.The rewinding tension of 30kgf

Electric heating power 108kw

The machines total power 125kw

Air supply pressure 0.6Mpa

Water supply pressure 0.2Mpa

Machine Dimensions (L u00d7 W u00d7 H) 11800 u00d7 4500 u00d74000mm

The machine Total Weight 15000kg
