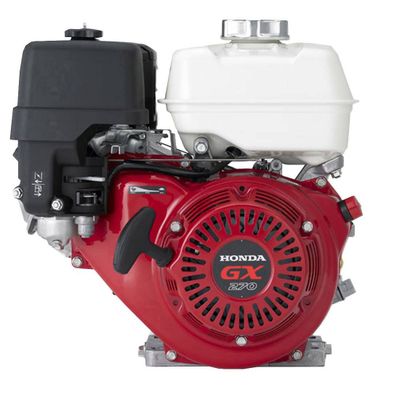

Honda GX270 Air-Cooled 4-Stroke OHV Engine

Honda GX270 Air-Cooled 4-Stroke OHV Engine.

Wholesale price only.

5 years international warranty.

GX160

GX270

With the GX270, you're looking at one of the best engines in the business. More power. Quieter performance. Lower fuel consumption. Lower emissions. Better features. Exceptional performance. Honda's GX series lives up to the legend, and then some.



COMMON APPLICATIONS

Pressure washers

Commercial lawn and garden equipment

Tillers / cultivators

Generators

Construction / industrial equipment

Agricultural equipment

Small vehicles

Water pumps

Engine Type Air-cooled 4-stroke OHV

Bore x Stroke 77 X 58 mm

Displacement 270 cm3

Net Power Output* 8.5 HP (6.3 kW) @ 3,600 rpm

Net Torque 14.1 lb-ft (19.1 Nm) @ 2,500 rpm

PTO Shaft Rotation Counterclockwise (from PTO shaft side)

Compression Ratio 8.5:1

Lamp/Charge coil options 25W, 50W / 1A, 3A, 10A, 18A

Carburetor Butterfly Float Type

Ignition System Digital CDI with variable ignition timing

Starting System Recoil/electric

Lubrication System Splash

Governor System Centrifugal Mass Type

Air cleaner Dual element

Oil Capacity 1.16 US qt (1.1 L)

Fuel Tank Capacity 5.6 U.S. qts (5.3 liters)

Fuel Unleaded 86 octane or higher

Dry Weight 55 lb (25 kg)

Dimensions

Length (min) 15.0" (380 mm)

Width (min) 16.9" (429 mm)

Height (min) 16.6" (422 mm)

PTO Shaft Options

E type Tapered shaft

H type Reduction type PTO

L type Reduction type PTO

P type Threaded type (SAE)

Q type Straight shaft

R type Reduction type PTO

V type Tapered shaft
