waterproof ultrasonic cleaner submersible

Skymen immersible ultrasonic transducer box-embedded in your existing tank.

good quality-custom made size-chemicals resistance-moveable-convenient install

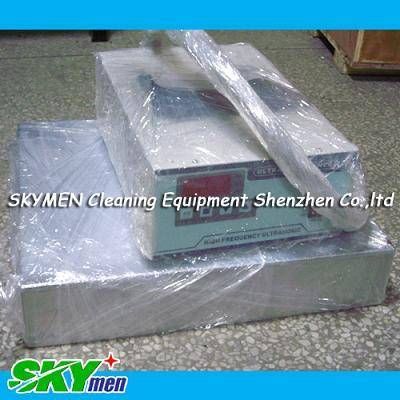

JTM series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.

Immersible ultrasonic transducer units can be installed in the tank by three ways:side and/or bottom mounted or top mounted depending on the tank geometry.. The specification of transducer boxes are available for custom made

Original BLT type transducer

SUS stainless steel housing Hard-Cr plating Treatment ( 20 + microns )

Adaptable for continuous operation

Adjustable ultrasonic power

With separate control ultrasonic electronic generator

Custom made size is available

Transducer no./transducer box: range[6pcs~40pcs per box]

Ultrasonic power: range[300W~2000W]

Ultrasonic frequency: 28KHZ/40KHz

Model (JTM models)JTM-1006JTM-1012JTM-1018JTM-1024JTM-1030JTM-1036

Ultrasonic transducer box size (mm)L305355406500550500

W250305305355406460

H100100100100100100

Housing materialSUS304/SUS316L

Surface finishingHard-Cr plating treatment (20+microns)

Ultrasonic frequency28KHz / 40KHz

Ultrasonic transducers6pcs12pcs18pcs24pcs30pcs36pcs

Ultrasonic power300W600W900W1200W1500W1800W

Electronic generatorKG300KG600KG900KG1200KG1500KG1800

Ultrasonic generator work separately control transducers

power suppyAC 110V/220V or 220/240V, 1,13AMP

*Custom made:68KHz/80KHz/120KHz and size are all available
