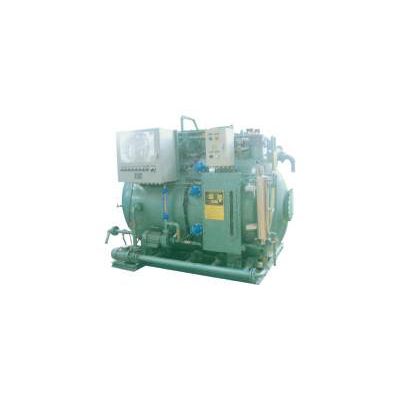

SWCM Marine Sewage Treatment Plants

This device adopts the principle of Activated Sludge, Bio-contact Oxidation and Membrane Biological Reactor (MBR) to digest organic pollutant. MBR can treat organic pollutant efficiently, drastically and cleanly to insure the effluent can meet the requirements of the resolution MEPC.159 (55) and other much harder requirements.

Advantages:

1Adopting horizontal circular design, ellipse closures on both ends, pressure resistance and compact structure.

2The device is adopted auto-control, and compliance with the requirement of 24-hours unattended cabin.

3adopting the "MBR" technology, allow devices to narrow the size, and solve the conflict of small space of cabin, but big volume of device.

4The intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of "aerobic - anoxic", and resolve the problem of "nitrogen and phosphorus removal".

5The device is adopting the principle of air-lifting to transfer the sludge from sediment tank and membrane tank to aeration tank, mealtimes the pump stops and air never stopped, so as the scale on the membrane surface comes down. Due to back flushing and clean the membrane online usd technology patent, so the life of membrane can be prolonged at least 8 to 9years.

6"On-line" cleaning technology, making the dirt on membrane off automatically, recover membrane flux. It can be solved the problem of opening the cleaning or replacement of membrane difficultly caused by the small space in cabin.

7The effluent after further treatment can be reached at the requirement of water reuse.
