YHQS5050 SWEEPER KIT

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.

An automatic clutch is set up on the transmission between the vice-engine and the fan, which can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown. Also simplified the operation, reduced the impact on vice-engine and improved the reliability and service life of vice-engine.

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.

Three positions of disk brush rotation speed (I. E. HIGH, MID and LOW) are provided for various road conditions to ensure the optimal cleaning effect.

1.This equipment is an environment-friendly special purpose sweeper, which integrates sweeping, sprinkling, and garbage transportation.

2. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.

3. When cleaning, the sweeping brushes softly contact the ground, largely reducing their wear and extending their working life.

4. The suction unit features elastic collision and ensures the safety during the cleaning process.

5. Equipped with oversized three layers of filter system, dust filtering ratio up to 99.99%, extending engine's life.

6. The hydraulic motor is imported from oversea, stable operation.

7. Equipped with a backup hydraulic unit, which is used to lift the garbage bin and other actions, in case the truck can not start.

8. The main and auxiliary engines are from the same brand, so it is relatively easy to maintain.

9. Stainless steel water tanks and garbage bin which makes the using life longer.

10. Customized suction fan provides ample wind force; ensure a smooth and efficient completion of work.

11. Equipped with warning light that ensures a safe working enviroment during the operation.

Emission StandardEuro III

Sweeping width3000mm

Sweeping speed25km/h

Maximum cleanable particle size110mm

Water tank1.2m3

Waste hopper capacity5m3

System Pressure13MPa

Operating systemFull Hydraulic control

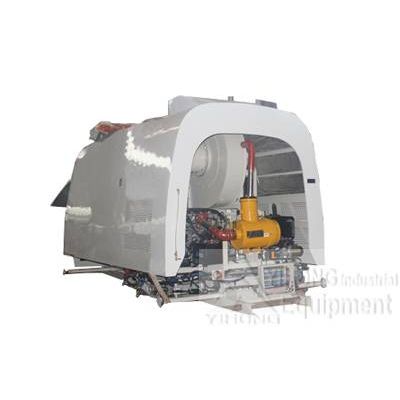

Skid unit used for mounting different chassis, our YHQS5050 sweeper kit can be mounted at ISUZU, HINO, HYUNDAI
