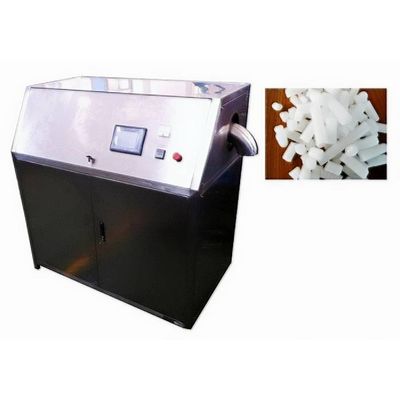

Dry Ice Pellet Making Machine (SIBK-100-1)

* High-density pellet dry ice for washing.

* Pellets for cold preservation.

* Produce pellets which are used as raw material for blast cleaning in tire, print and diesel engine repairing enter prise as well as cold-storage transportation.

* Suitable for those Liquid CO2 companies and factories who are going to produce batch dry ice inpellet as well as those who are going to produce in small quantity.

Advanced PLC automatically controlled system, optimization of the hydraulic system, accurate and graphical screen.

The location of the conveyor belt, facilitate the side-by-side arrangement of multiple machines.

The improved output percentage of the dry ice reduces the raw material consumption.

Material

Liquid CO2



Dry ice dimensions

Dia 3 - 16 mm



Capacity

100 kg/h



Dry ice density

more than 1.45 g/cm3



Percentage of dry ice

more than 40%



Working pressure

16 MPa



Electric power

5.5 Kw



Capacity of hydraulic oil

80 L



Overall size

1400(L)x800(W)x1400(H) mm



Total weight

750 Kg
