High Capacity Wood Chipper Shredder crushing wood logs less than 200mm in diameter

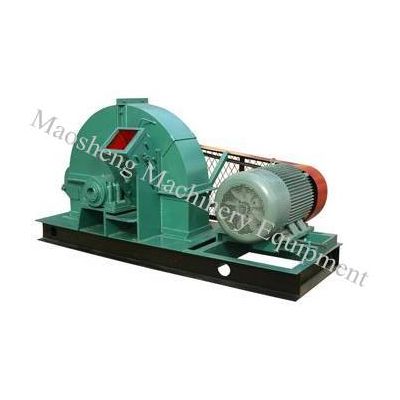

Wood Chipper Shredder

It can crush raw wood of size less than 200mm (diameter) into size of 3-5mm (diameter).

The wood chipper supplied by our company is a kind of newly-developed wood crushing equipment for raw wood, which is an innovation on the basis of all the traditional crusher-making theories both home and abroad. It is composed of machine body, knife chipping part, chips re-crushing part and sieving part, etc. It combines both chipping and crushing in one machine, can make sawdust in one passage, no need to use wood chipper for pre-processing of wood logs.

Wood Chipper Shredder



Features:



1. Wood Chipper Shredder has compact structure , reasonable layout, easy installation, easy operation and maintenance.



2. The length of the chip can be adjusted freely within the limited prescribed.

Wood Chipper Shredder



Main technical specifications:



Model

9FC-40

9FC-60



Capacity(KG/H)

300

800



Output(KG/8H)

2400

6400



Power(KW)

11

18.5



Voltage

380V 50HZ

380V 50HZ



Max size of input(MM)

50--200

50--200



Raw materials

Wood logs, wood branches, etc.

Wood logs, wood branches, etc.



Output size(MM)

Below 3

Below 3



Dimensions(MM)

1000*500*800

1200*830*1000



Weight(KG)

250

850

Wood Chipper Shredder



Application:



1) Wood Chipper Shredder can make wood logs, wood waste into small pieces with length 15-35mm, thickness 2-7mm.



2) Wood Chipper Shredder can cut log and small-diameter log with diameter below 200mm.

Wood Chipper Shredder
